Brand:Huawei
Model:IPC6224-IR
Lens: 3.6MM/6MM

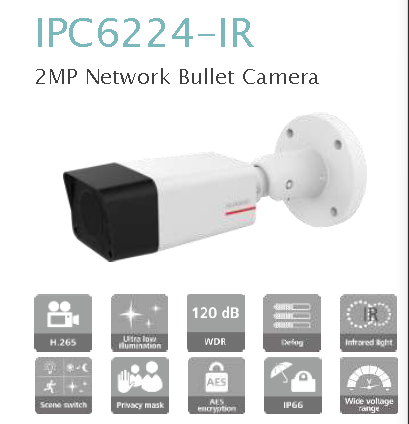

IPC6224-IR 3.6MM 2MP Network Bullet Camera
Features
H.265, H.264 and MJPEG video compression standard
Wide dynamic range up to 120dB
Max. 30 meters IR coverage
Intelligent IR control
IP66 protection class
Ultra wide operating temperature range:-30℃ ~ 60℃
DC supply can be hot standby for PoE

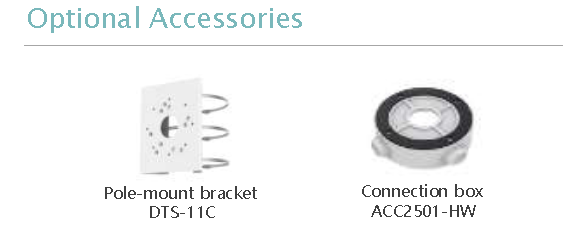

Pole-mount bracket
DTS-11C
Connection box
ACC2501-HW
Specifications
Model Item IPC6224-IR
Camera
Image sensor 1/2.7" 2.0 megapixel progressive scan CMOS
Effective pixels 1920(H)×1080(V)
Min. Illumination
Color: 0.005lux (F1.4, AGC ON)
B/W : 0.003lux (F1.4, AGC ON), 0 lux with IR on
Day/Night mode Auto/Color/Monochrome (removable infrared-cut filter)
Electronic shutter
speed
1/100000s to 1s
Gain control Automatic / manual
Wide Dynamic
Range
120dB
Backlight
compensation
Supported
Defog Automatic / Manual
White balance
Auto/Auto-track/Manual//OnePush, Scenarios mode:
Indoor/Outdoor/Fixed sodium lamp/Fluorescent lamp
1/Fluorescent lamp 2/Incandescent lamp
Digital noise
reduction
Self-adaptive to 2D or 3D DNR
IR coverage 3.6mm: Max 15m; 6mm: Max 20m; 12mm: Max 30m.
Lens Focal Length Fixed 3.6mm/6mm/12mm, F2.2
Angular Field of View
3.6mm:Horizontal: 92°,Vertical49°
6.0mm:Horizontal:56.2°,Vertical:31°
12mm:Horizontal:27.6°,Vertical:15.5°
Iris value F2.2
Auto-Iris Fixed Iris
Function
Video compression H.265 / H.264 / MJPEG
Max. resolution 1920×1080
Frame rate 60Hz:30/20~1fps / 50Hz:25/20~1fps
Video bit rate 32 kbit/s to 8 Mbit/s
Multiple streaming Double Full HD(1080p) streams/Treble streams
Media stream set
Four predefined packages(High quality, Balanced, Low bandwidth,
and Mobile devices) and four customized packages
ISP packages
Five predefined typical scenarios(Outdoor, Indoor, Motion capture,
Low-light, and Backlight mode) and eight user-defined scenarios.
PU access protocol
ONVIF Profile S/G,GB/T 28181-2014, Genetec Protocol v1.00 and
HUAWEI SDK(private protocol)
Network protocol
TCP，UDP，IPv4，IPv6，DHCP，DHCPv6，DNS，ICMP，ICMPv6，
IGMP，HTTPS，F(xiàn)TP，SFTP，RTP，RTSP，RTCP，SIP，ARP，SSL，
NTP，SNMP（V1/V2/V3），802.1x，QoS，DDNS
Security mode
User name and password authentication, 802.1x , HTTPS digital
certificate
Stream encryption
Stream encryption using the AES128/192/256 encryption
algorithm, and digital watermark
Intelligent
detections
Motion detection and tampering detection
Alarm actions Alarm output, SD card recording and snapshot.
Interface
Ethernet interface 1x RJ45 10/100 Base-T self-adaptive Ethernet port
Alarm interface 1-channel alarm in and 1-channel alarm out
Memory card slot
1x MicroSD/SDHC/SDXC slot supporting memory card up to 64GB
General Parameter
Power supply DC12V ± 25%, PoE(IEEE 802.3at/af)
Power consumption Typ. 3.2W, Max 9.4W
Operating
temperature –30° to +60° C
Operating humidity 5% to 95% (non-condensing)
Surge suppression 6kA surge current, complies with ITU-T K.44
Anti-corrosion Satisfies 10 days salt spray test, complies with IEC60068-2-11
IP protection class IP66, complies with IEC 60529
Weight Net weight: 1350 g; gross weight: 2000g
Dimensions
Physical dimensions: 272.4×84.1×66.0mm
Packing dimensions: 400.0×200.0×136.00 mm
