Brand:Samsung
Model:SPD-3320P

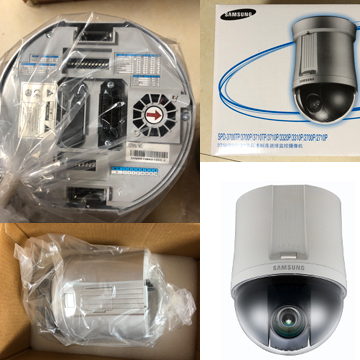

SPD-3320P Samsung CCD Analog Ball Camera
SPD-3750P 3.5-129.5mm(37xOptical zoom)
SPD-3710P 3.5-129.5mm(37xOptical zoom)
SPD-3320P 3.5-115.5mm(33xOptical zoom）
SPD-2710P 3.5-94.5mm(27xOptical zoom）
Minimum illumination：[email protected], Black and white 0.03Lux：SPD-3750P
Minimum illumination：[email protected], Black and white 0.02Lux：SPD-3710P/3320P/2710P
ICR Day night conversion，Intelligent analysis, Dynamic detection, DNR (3D+2D)
IP67, Coaxial visual control(CCVC), RS-485, 24V AC 9,000 CN: SPD-3710P
Technical Parameter
|
Specification / model |
SPD-3750P |
SPD-3710P |
SPD-3320P |
SPD-2710P |
|||
|
VIDEO |
|||||||
|
Camera element |
1/4" Vertical double density CCD |
1/4" Super HAD CCD |
|||||
|
Total pixels |
795 (horizontal) x 596 (vertical) |
||||||
|
Effective pixel |
752(horizontal) x 582 (vertical) |
||||||
|
Scanning system |
2:1 Interlaced scan |
||||||
|
Synchronization mode |
Internal / external synchronization |
||||||
|
Scanning frequency |
Horizontal：15.625KHz/vertical：50Hz |
||||||
|
Horizontal resolution |
Colour：550TV line，Black and white：680TV line |
||||||
|
Minimum illumination |
Colour：[email protected] (50IRE),0.001Lux (Sens-up, 512x) |
Colour：[email protected] (50IRE), 0.001Lux (Sens-up, 512x) |
|||||
|
Signal to noise ratio |
52dB |
||||||
|
Video output |
CVBS: 1.0Vp-p/75 ohm composite video |
||||||
|
Camera lens |
|||||||
|
Variable focal length |
3.5~129.5mm (37xOptical zoom) |
3.5~115.5mm(33xOptical zoom） |
3.5~94.5mm(27xOptical zoom） |
||||
|
Maximum aperture ratio |
1:1.6(Wide)~3.9(Tele) |
|
1:1.6(Wide)~3.6(Tele) |
||||
|
Lens viewing angle |
H:55.5°(Wide)~1.59°(Tele) / |
H:55.5°(Wide)~1.77°(Tele) / |
H:55.5°(Wide)~2.24°(Tele) / |
||||
|
Lens type |
Manual / automatic / primary focus |
||||||
|
Minimum visible distance |
1m |
1.9m |
|||||
|
Zoom speed |
2.5 Seconds (wide angle to telephoto) |
||||||
|
Pan / Tilt |
|||||||
|
Horizontal rotation range |
360° |
||||||
|
Horizontal rotation speed |
Preset：500° /Seconds，Manual: 0.024 ° / S ~ 120 ° / S |
||||||
|
Vertical rotation range |
-5°~185° |
-6°~186° |
|
|
|||
|
Vertical rotation speed |
Preset：500° /Seconds，Manual: 0.024 ° / S ~ 120 ° / S |
||||||
|
Preset position |
255 |
||||||
|
Preset bit accuracy |
±0.1° |
||||||
|
Function |
|||||||
|
Screen display |
Support multiple languages: English, French, German, Spanish, Italian, Chinese, Russian, polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish, Portuguese |
||||||
|
Camera identification number |
Off / on (up to 12 bytes) |
||||||
|
Day night conversion |
ICR Day night conversion/Colour/Black and white |
||||||
|
Backlight compensation |
BLC/HLC/OFF |
||||||
|
Wide dynamic |
160x |
||||||
|
Contrast enhancement |
XDR ((off / low / medium / high)) |
||||||
|
Digital noise reduction |
Adaptive 3D + 2D class (off / low / medium / high / user) |
||||||
|
Digital image stabilization |
On / off |
||||||
|
Dynamic detection |
Off / tracking / detection |
||||||
|
Privacy masking |
On / off (8 areas can be set) |
||||||
|
Sensitivity |
2x~512x |
||||||
|
Automatic gain |
Low / medium / high / manual / off |
||||||
|
White balance |
Automatic tracking / automatic white balance / manual / indoor / outdoor |
||||||
|
Shutter speed |
1/50 ~ 1/120,000sec |
||||||
|
Digital zoom |
Off / on (1x ~ 16x) |
||||||
|
Digital Flip |
Flip horizontal / Flip Vertical |
||||||
|
Intelligent analysis |
Fixed / Mobile |
||||||
|
Picture in picture |
On / off |
||||||
|
Timetable |
Date/time |
||||||
|
Alarm |
4 channels input, 2 channels output, 1 additional interface |
||||||
|
Remote control |
Coaxial visual control（coordination SPC-300P), RS-485 |
||||||
|
Protocol |
Coax : CCVC |
||||||
|
Environment |
|||||||
|
Operating temperature / humidity |
-10℃~+50℃/80%RH within |
||||||
|
Power |
|||||||
|
Power Supply |
24V AC |
||||||
|
Power rate |
Maximum 13W |
||||||
|
Product specification |
|||||||
|
Color / material |
Ivory / plastic |
||||||
|
Dimensions (W x H x D) |
?155x243.4mm |
||||||
|
weight |
2Kg | ||||||
