型號(hào)Model：AXIS N5074
焦距l(xiāng)ens：2.2-11.0 mm, F1.4–F2.5

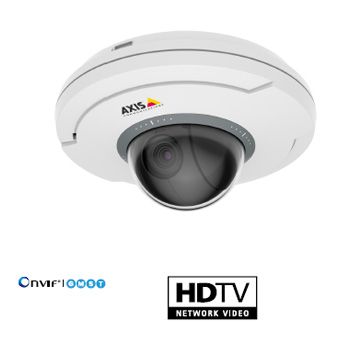

AXIS M5074 02345-001全景攝像機(jī)
Camera
Image sensor 1/2.8” progressive scan RGB CMOS
Lens Varifocal. 2.2–11.0 mm, F1.4–F2.5
Horizontal field of view: 14°–71°
Vertical field of view: 8°–40°
Autofocus
Minimum
illumination
Color: 0.1 lux at 30 IRE F1.4
Shutter speed 1/17000 s to 2 s
Pan/Tilt/Zoom Pan: ±179°, 100°/s
Tilt: 90°, 100°/s
Zoom: 5x optical, 12x digital
256 preset positions, control queue, on-screen directional
indicator, set new pan 0°, autofocus area, focus recall
System on chip (SoC)
Model ARTPEC-7
Memory 1024 MB RAM, 512 MB Flash
Video
Video
compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles
H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG
Resolution 1280x720 to 320x180 (16:9)
Frame rate Up to 50/60 fps (50/60 Hz) in all resolutions
Video streaming Multiple, individually configurable streams in H.264, H.265 and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264
Video streaming indicator
Image settings Saturation, contrast, brightness, sharpness, WDR, white balance,
day/night threshold, local contrast, tone mapping , exposure
mode, exposure zones, compression, rotation: 0°, 180°, barrel
distortion correction, text and image overlay, polygon privacy
masks
Audio
Audio streaming One-way
Audio encoding 24 bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz,
G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
Configurable bit rate
Audio input Built-in microphone
Network
Network
protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS
Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour),
UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP,
NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3,
DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog
(RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX® and
AXIS Camera Application Platform; specifications at axis.com
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S and
ONVIF® Profile T, specification at onvif.org
Onscreen
controls
Day/night shift
Video streaming indicator
Focus recall zone
Privacy masks
Event conditions Audio: audio detection
Device status: above operating temperature, above or below
operating temperature, below operating temperature, IP address
removed, network lost, new IP address, storage failure, system
ready, within operating temperature
Edge storage: recording ongoing, storage disruption, storage
health issues detected
I/O: manual trigger, virtual input
MQTT subscribe
PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position
reached, PTZ ready
Scheduled and recurring: scheduled event
Video: average bitrate degradation, day-night mode, live stream
open, tampering
Event actions Day-night mode
MQTT publish
Overlay text
Preset positions
Recordings
Status LED
WDR mode
Notification: email, HTTP, HTTPS, TCP and SNMP trap
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network
share and email
Data streaming Event data
Built-in
installation aids
Leveling assistant, pixel counter
Analytics
Applications Included
AXIS Video Motion Detection, audio detection, active tampering
alarm, gatekeeper, AXIS Scream Detection, AXIS Removed Object
Detection
Support for additional applications if the device is used with
compatible accessories. For more information, contact your Axis
partner.
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
General
Casing IP51-rated plastic casing, clear dome
Color: white NCS S 1002-B
For repainting instructions, go to the product’s support
page. For information about the impact on warranty, go to
axis.com/warranty-implication-when-repainting.
Sustainability PVC free
Power Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
Typical 4.2 W, max 9.3 W
Connectors RJ45 10BASE-T/100BASE-TX PoE
Storage Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit)
Recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating
conditions
0 °C to 45 °C (32 °F to 113 °F)
Humidity 10–90% RH (non-condensing)
Storage
conditions
-30 °C to 60 °C (-22 °F to 140 °F)
Humidity 5–95% RH (non-condensing)
Approvals EMC
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,
FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),
KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A,
VCCI Class A
Safety
CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252
Environment
IEC/EN 60529 IP51
Network
NIST SP500-267
Dimensions ?130 x 63 mm (?5.1 x 2.5 in)
Weight 380 g (0.84 lb)
Included
accessories
AXIS M50 Mounting Kit, Installation Guide, Windows decoder
1-user license
Optional
accessories
AXIS M50 Clear Dome Cover A
For more accessories, see axis.com
Video
management
software
AXIS Companion, AXIS Camera Station, video management
software from Axis Application Development Partners available
at axis.com/vms
Languages English, German, French, Spanish, Italian, Russian, Simplified
Chinese, Japanese, Korean, Portuguese, Polish, Traditional
Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai,
Vietnamese
