Brand:Honeywell
Model:HIPTZ-2201W-IR
Focal Length f=4.7-94mm

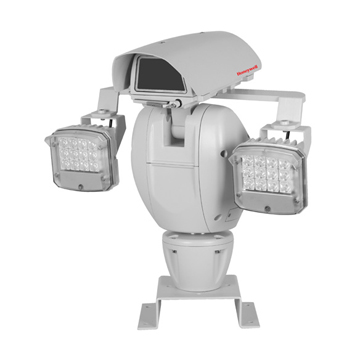

HIPTZ-2201W-IR 1080P 20x IP All-in-one PTZ Camera with IR Illuminators
Honeywell HIPTZ-2201W-IR is an IP based all-in-one PTZ camera that integrates
a zoom block camera and an IP67 rated aluminium pan/tilt head with wide
rotation angle into one compact system. It is an ideal solution for city surveillance,
traffic monitoring, borders and other critical infrastructures.
HIPTZ-2201W delivers high definition 1080P (1920 x 1080) resolution at up
to 25/30 fps. It also supports multiple simultaneous video streams which can
be compressed in H.264 and MJPEG formats. By applying the H.264 video
compression technology, the HIPTZ-2201W streams high quality images at
optimized bandwidth to reduce data volume and save storage space.
Featuring 360° horizontal rotation and -90° to +40° tilt range at high speed rate,
the HIPTZ-2201W-IR provides a much wider and more flexible viewing angle than
traditional PTZ dome cameras, and is capable to respond quickly to capture the
emergency scene. The 20x zoom lens delivers a full picture of the area under
surveillance in optimal width and depth.
The built-in superlative IR illuminators are designed for surveillance in low
illumination environments. With outstanding 200-meter IR beam distance, the
HIPTZ-2201W-IR guarantees sharp and clear images to be captured even at long distance.
Market Opportunities
Honeywell HIPTZ-2201W-IR is designed for high quality surveillance for critical
infrastructures such as highways, city surveillance, airports, seaports, borders
and so on. With a wide angle pan/tilt head, IP67 housing, IR illuminators, builtin
wiper, and fully-assembled body, this all-in-one IP PTZ camera helps enhance
installation and operation efficiency resulting in improved surveillance quality.
FEATURES
? 1080P high definition resolution at 25/30fps
? 20x optical zoom
? H.264/ MJEPG video compressions
? IR beam distance up to 200m
? 360° continuous pan rotation at up to 100°/s
? Tilt range of -90° to +40°with speed up to 60°/s
? 256 preset positions
? IP67, vandal-proof
? Integrated into Honeywell Universal Surveillance (HUS) Platform and Honeywell
? ONVIF compliant
ORDERING
HIPTZ-2201W-IR IR All-in-one IP PTZ camera, 1/2.8" CMOS, 1080P, 20x, WDR, IP67, 200m IR LED, ONVIF .
SPECIFICATIONS
Model HIPTZ-2201W-IR
Video
Image Sensor 1/2.8'' Progressive Scan CMOS
Effective Pixels 2.3 megapixels (2096 x 1097)
Minimum Illumination 0.04 Lux (F1.6, 350mV equivalent) 0 Lux (IR LED On)
Day/Night TDN
Focal Length f=4.7 – 94mm
Iris F1.6 – F3.5
Wide Dynamic Range ON/OFF
Digital Noise Reduction ON/OFF
BLC, White Balance Auto/Manual
OSD Overlay Name / date / stream information; Position adjustable
IR Illuminator 2 pieces
IR Beam Distance 200m
IP Specification
Video Compression H.264 Main Profile and Motion JPEG simultaneously
Image Resolution Main stream: 1920 x 1080 @ 25/30fps, 1280 x 720 @ 25/30fps
Extra stream: 640 x 480, 320 x 240, 160 x 112 @ 25/30fps
Bit Rate 32Kbps-16Mbps continuously adjustment; CBR/VBR
Audio Compression G.711
Supported Protocol TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
Security Password protection, IP address filtering, user access log
User 8 simultaneous live view users
Communication Protocol ONVIF
Pan, Tilt, Zoom
Pan 0 - 360° continuous rotation at 0.5° - 100°/sec
Tilt -90° to 40° at 0.5° - 60°/sec
Zoom 20x Optical Zoom with 12x Digital Zoom
Preset 256 positions
Tracking 2 sequence
Alarm and Event
Alarm Trigger Intelligent video motion detection and external input
Motion Detection 4 zones
Alarm Event Event server: FTP server, SMTP server, Web browser
Electrical
Power Supply 24VAC
Power Consumption 90W (heater on)
Mechanical
Dimensions 332 (L) x 223 (W) x 501 (H) mm
Weight Approx. 16 kg
Construction Die Casting Aluminum
Connector RJ45 x 1 (Ethernet), 10Base-T/100Base-TX Auto Detect
Power / Video / RS485 / Alarm / Ground / Audio
Environmental
Protection Class IP67, vandal-proof
Operating Temperature -40°C - 60°C
Operating Humidity 0 - 90% (non-condensing)
Safety Built-in surge and lightning protection
Protection Types Built-in heater fan and wiper
Software
Browser IE 8.0 or above
Platform compatible Honeywell Universal Surveillance (HUS) Platform
Honeywell NVR systems
Regulatory
Certification CE, FCC
