Brand：Pelco
Model:P2820-ESR
focal length 4.4mm (wide)-88.4mm (tele)

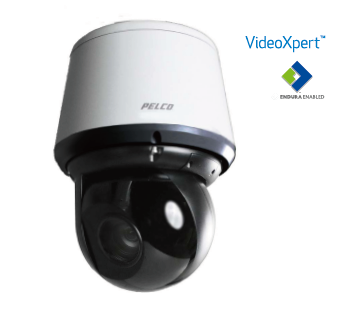

P2820-ESR Pelco Pro 4K Series IP PTZ Outdoor Camera
Product Features
? Up to 4K Resolution (2160p)
? Up to 30 Images per Second (ips) at 8 MPx
? 850 nm IR Illumination to 150 m
? H.265, H.264, and MJPEG Video Encoding
? Tilt Range +15° to –90° Degrees
? IR Illumination with Proportional Brightness Based Upon Zoom
? High Dynamic Range (HDR) Mode, 72 dB
? Sabotage and Simple Motion Detection
? Pelco’s Smart Compression Technology
? Power Over Ethernet (802.3bt), 24 VAC, 48 VDC
? Electronic Image Stabilization (EIS)
? Up to 2 TB Edge Storage with micro SDHC/SDXC Card
? Super Resolution Zoom Mode
? 3-Year Warranty and Support
Full High Definition Camera
Pelco’s Spectra® Pro 4K (2160p) Series provides up to 8 MPx
resolution, which is four times the resolution of 1080p. Combined
with 20x optical zoom, one single camera can cover a large area with
crystal clear detailed information such as a license plate, face, etc.
Depending on the imaging scene, the HDR mode makes the darker
part of a camera image brighter, and automatically corrects
brightness and contrast to show bright parts clearly.
Video Encoding
Spectra Pro 4K Series provides three methods of video encoding:
H.265 Main profile, H.264 High/Main/Baseline profiles and MJPEG.
High Resolution Zoom
Spectra Pro 4K provides superior images while maintaining the
resolution without degrading image quality, even when magnified.
By combining with optical zoom 20x, zoom is achieved up to 30x in 4K
and 40x in FHD.
Spectra Pro 4K Series can see in absolute darkness. The infrared
illumination (IR) has proportional brightness based upon zoom,
creating visible pictures without any light up to 150 m from the
camera. The IR wavelength is 850 nm giving an almost undetectable
light source in locations where visible light is undesired or light
pollution is regulated.
The Pro 4K Series offers a wider tilt range giving the camera the
ability to look above the horizon 15 degrees (center of field of view).
Embedded Features
Included in all models are built in video analytics (e.g. Sabotage and
Simple Motion Detection). Spectra Pro 4K also allows for up to 16
configurable window blanks. White Balance modes including Auto or
Manual are available for overcoming difficult lighting conditions day
and night. Spectra Pro 4K supports up to 2 TB of onboard local
storage (not supplied) that is easily accessible through the ONVIF
Profile G protocol or FTP
Intuitive Design
Spectra Pro 4K Series features the same ease of installation and
maintenance that you have come to expect from Spectra. In addition,
the top cover is hinged so that after installation on a mount, the
wiring connections can be made while the camera weight hangs on
the mount.
VMS Integration
Spectra Pro 4K easily connects to Pelco IP and hybrid video systems
such as VideoXpert, Endura 2.0 (or later), and Digital Sentry 7.3 (or
later). The camera is also compatible with Digital Sentry NVS (DS
NVS), a full-featured video management software, which is available
as a free download at www.feifeishijie.com.cn DS NVS includes four free
Pelco IP licenses and allows for the management of video from up to 64 cameras.
Pelco endeavors to be the most open and integrated camera provider
in the industry and as a part of that effort Spectra Pro 4K is integrated
with a long and ever-growing list of 3rd party software and Video
Management Systems (VMS).
CAMERA/OPTICS
Specification Spectra Pro 4K
Sensor Type 1/2.5-inch Exmor R CMOS
Optical Zoom 20X
Digital Zoom 12X
Maximum Resolution 3840 x 2160
Lens f/2.0 ~ f/3.8, focal length 4.4 mm (wide) ~ 88.4 mm (tele)
Angle of View
Horizontal 70.2° (wide) ~ 4.1° (tele)
Vertical 42.1° (wide) ~ 2.3° (tele)
Diagonal 77.8° (wide) ~ 4.7° (tele)
Aspect Ratio 16:9
Light Sensitivity
Color (33 ms) 1.0 lux
Color (125 ms) 0.3 lux
Mono (33 ms) 0.5 lux
Mono (125 ms) 0.2 lux
Mono with IR 0.0 lux
Note: Sensitivity in lux for 90% reflectance, f/1.6 (wide angle),
45 dB gain at 30 IRE (30% of signal level)
Day/Night Capabilities Yes
Shutter Range 1/4 ~ 1/10,000 sec
Signal-to-Noise Ratio >45 dB
IR Cut Filter Yes
Electronic Dynamic Range 72 dB
Iris Control Auto iris with manual override
Backlight Compensation Yes
Automatic Gain Control Yes
Active Noise Filtering 3D Noise Filtering
Electronic Image Stabilization
(EIS) Yes
GENERAL
Construction Aluminum
Cable Entry (Back Box)
Pendant Through 1.5-inch NPT pendant mount
Weight (Approximate) Unit Shipping
Environmental Pendant 5.2 kg (11.5 lb) 6.2 kg (13.7 lb)
Effective Projected Area (EPA)* 63.5 square inches (without mount),
109.8 square inches (with IWM Series mount)
*0.8 drag coefficient assumed. Air temperature and wind velocity
impact drag coefficient so if a more accurate EPA is required, then
the drag coefficient must be determined experimentally.
Clock Real time clock
IR Wavelength 850 nm
IR Range 150 m
ALARM
Unsupervised Detects open or closed alarm state
Input Two alarms, 3.5 VDC maximum, 3.5 mA
maximum
Relay Output Two outputs, ±32 VDC maximum, 150 mA
maximum
AUDIO
Input/Output Line level/external microphone input; 1Vp-p
maximum signal level
Streaming Embedded audio
SYSTEM MODEL NUMBERS
P2820-ESR 4K 20x Light Gray Spectra Pro 4K Environmental Pendant
RECOMMENDED MOUNTS
IWM-SR, IWM24-SR Wall mount, with or without integral 24 VAC, 100 VA transformer; can be adapted for corner, parapet, orpole application
WMVE-SR Environmental wall mount; can also be mounted using a pole
PP350/PP351 Spectra dome parapet; wall/rooftop mount
Note: For ease of installation, the Spectra Pro 4K Series has a top cover that is hinged. This way, after installation on a mount, while
the camera weight is hanging on a mount, wiring connections can be made.
POWER SUPPLIES
WCS1-4 Model (WCS Series) Single 24 VAC camera power supply, indoor
ECPS-48VDC-5A 48 VDC indoor power supply
POE90U1BT-EUK 90 W HPOE 802.3BT single port injector EU and UK power cord included
POE90U1BT-US 90 W HPOE 802.3BT single port injector US power cord included
POE90U1BT 90 W HPOE 802.3BT single port injector power cord not included
