Brand:Pelco
Model:IXE23 2MP
IXE33 3MP

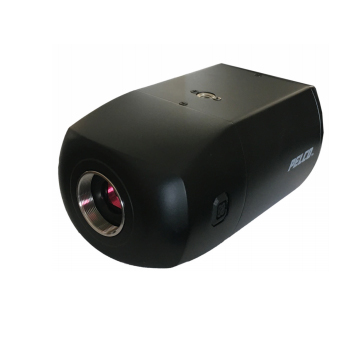

IXE23 IXE33 IXE Series Box IP Camera
Product Features
? SureVision Technology (Advanced Low-Light & WDR Performance Simultaneously, Anti-Bloom Technology, 3D Noise Filtering, and Enhanced Tone Mapping)
? Up to 8 Megapixel (MP) Resolution (4K)
? Up to 120 Frames per Second (fps) at 1080p on select models
? Up to 130 dB Wide Dynamic Range (2 MP and 3 MP Models),Up to 120 dB Wide Dynamic Range (5 MP and 4K Models)
? Robust Electronic Image Stabilization
? Built-in Pelco Enhanced Analytics Suite & Capable of Advanced Deep Learning Analytics Available Separately
? H.265, H.264, and MJPEG Encoding with Pelco Smart Compression
? Supports i-CS Megapixel Lenses (Sold Separately As Accessories)
? Power over Ethernet (PoE), 24 VAC, 12 VDC
? Power Redundancy Between PoE and 12 VDC / 24 VAC
? Support for Local Storage with Micro SD Slot for SDHC/SDXC Card
? Compatible with Pelco and Third-Party Video Systems
? ONVIF Profile S, Profile G, and Profile T Conformant
? Full 3-Year Warranty and Support Environmental/VandalResistant
? Black, RAL 9011
? Aluminum Construction
? Recommended Lenses (MI2.8-8.5P, MI3.9-10P, MI9-50P)
? Recommended Mounts (C11-UM, CM1751, TB1751)
? Recommended Enclosures (EH20 Series*, EHS8000 Series*)
? Built-in Microphone
*Not all lens/camera
combinations supported.
CAMERA
Imaging Device 1/2.8 (2 MP or 3 MP sensors) or 1/1.8 (5 MP or 8 MP/4K sensors)
Imager Type CMOS
Imager Readout Progressive scan
Highest Resolution
8 MP (4K) 3840 x 2160
5 MP 2592 x 1944
3 MP 2048 x 1536
2 MP 1920 x 1080
Signal-to-Noise Ratio >50 dB
Electronic Shutter Range 1/10,000 sec (or faster) to 1sec
Wide Dynamic Range Up to 130 dB (2 MP and 3 MP Models),
Up to 120 dB (5 MP and 8 MP/4K Models),Per IEC 62676
White Balance Range: 2,500° to 10,000°K; Selectable Auto/Manual
Day/Night Capabilities Mechanical IR cut filter (ON/OFF/AUTO),with
different set points on lux
3D Noise Reduction Yes (ON / OFF selectable)
AUDIO
Streaming Bidirectional: full or half duplex
Built-in Microphone 60 SPL @ 25 ft >40 dB SNR
Input Line level, 3K ohm differential with/1Vp-p
maximum signal
Output Line level, 600 ohm differential with/1Vp-p
Encoding G.711-Alaw/G711-Ulaw
GENERAL
Construction Aluminum
Finish Black, RAL 9011
Weight 0.48 kg (1.06 lb) (Unit),
0.63 kg (1.34 lb) (Shipping)
ENVIRONMENTAL
Operating Temperature –10° to 55°C (14° to 131°F)
Start-up Temperature –10°C (14°F)
Storage Temperature –40° to 60°C (–40° to 140°F)
Operating Humidity 10 to 90%, RH noncondensing
Storage Humidity 20 to 80%, RH noncondensing
Shock and Vibration
Resistance Tested in accordance to IEC/EN 60068:2-6 and 2-27
www.feifeishijie.com.cn
Resolution ModelNumber Description
2 MP IXE23 Sarix Enhanced Box IP Camera
3 MP IXE33 Sarix Enhanced Box IP Camera
5 MP IXE53 Sarix Enhanced Box IP Camera
8 MP4K IXE83 Sarix Enhanced Box IP Camera
RECOMMENDED MOUNTS
C11-UM Gang box mount
CM1750 Pedestal mount
TB1751 T-rail mount
RECOMMENDED LENSES
MI2.8-8.5P* MP iCS lens 2.8-8.5 mm
MI3.9-10P MP iCS lens 3.9-10 mm
MI9-50P MP iCS lens 9-50 mm
*Compatible with IXE23 and IXE33 only.
RECOMMENDED ENCLOSURES
EH20 Series Compact, indoor/environmental, IP-enabled
enclosures
EHS8000 Series Rugged, outdoor, stainless steel enclosures
POWER SUPPLIES
WCS Series Outdoor, 24 VAC power supply
POE130-XT Single-port PoE Gigabit extender powered by
POE190-BT injector
POE130-AT (US or EU) Single-port PoE+ midspan with power cord
POE430-AT (US or EU) 4-port, 30W per port PoEmidspan with powercord
POE1236-AT (US or EU) 12-port, 36W PoE midspan
POE2436-AT (US or EU) 24-port, 36W PoE midspan
CERTIFICATIONS/RATINGS
? CE (Class A)
? FCC (Class A)
? ICES-003 (Class A)
? UL/cUL Listed
? UL/IEC/EN 60950-1, 62368-1
? KC*
? NOM
? RCM
? EAC*
? BIS
? ONVIF Profile S, Profile G, and Profile T Conformant
