Brand：pelco
Model:IME338-1ERS
IME338-1IRS

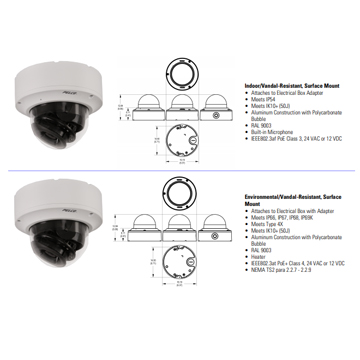

IME338-1ERS IME338-1IRS Pelco IME Dome Camera
CAMERA
Imaging Device 1/2.8-inch or 1/1.8-inch
Imager Type CMOS
Imager Readout Progressive scan
Highest Resolution
4 K 3840 x 2160
5 MP 2592 x 1944
3 MP 2048 x 1536
2 MP 1920 x 1080
Signal-to-Noise Ratio >60 dB
Electronic Shutter Range 1/10000 sec (or faster) to 1sec
Wide Dynamic Range Up to 130 dB (2 MP and 3 MP Models),
Up to 120 dB (5 MP and 4 K Models)
White Balance Range: 2,500° to 10,000°K; Selectable Auto/
Manual
Day/Night Capabilities Mechanical IR cut filter (ON/OFF/AUTO), with
different set points on lux
Adaptive IR Illumination 850nm wavelength, maximum distance of
50 meters (164 feet)
3D Noise Reduction Yes (ON / OFF selectable)
AUDIO
Streaming Bidirectional: full or half duplex
Built-In Microphone 60 SPL @ 25 feet >40dB SNR (indoor models
only)
Input Line level, 3K ohm differential with/1Vp-p
maximum signal
Output Line level, 600 ohm differential with/1Vp-p
Encoding G.711-Alaw/G711-Ulaw
GENERAL
Pan/Tilt Adjustment Manual
Pan 0° ~ 370°
Tilt -10° ~ -90°
Rotation ±100°
Construction Aluminum with polycarbonate bubble
Finish White, RAL 9003
Weight
Unit 1.41 kg (3.1 lb)
Shipping 1.81 kg (4 lb)
EPA 36.9 in^2
Back Box Resolution ModelNumber Lens Description
2 MP IME238-1ERS 2.8 ~ 8 mm 2 MP Sarix Enhanced IR Environmental Dome
2 MP IME238-1IRS 2.8 ~ 8 mm 2 MP Sarix Enhanced Indoor IR Dome
3 MP IME332-1ERS 8 ~ 20 mm 3 MP Sarix Enhanced Environmental IR Dome
3 MP IME332-1IRS 8 ~ 20 mm 3 MP Sarix Enhanced Indoor IR Dome
3 MP IME338-1ERS 2.8 ~ 8 mm 3 MP Sarix Enhanced Environmental IR Dome
3 MP IME338-1IRS 2.8 ~ 8 mm 3 MP Sarix Enhanced Indoor IR Dome
5 MP IME539-1ERS 4 ~ 9 mm 5 MP Sarix Enhanced Environmental IR Dome
5 MP IME539-1IRS 4 ~ 9 mm 5 MP Sarix Enhanced Indoor IR Dome
4 K IME832-1ERS 9 ~ 20 mm 4K Sarix Enhanced Environmental IR Dome 4K
4 K IME832-1IRS 9 ~ 20 mm 4K Sarix Enhanced Indoor IR Dome 4K
4 K IME839-1ERS 4 ~ 9 mm 4K Sarix Enhanced Environmental IR Dome 4K
4 K IME839-1IRS 4 ~ 9 mm 4K Sarix Enhanced Indoor IR Dome 4K
RECOMMENDED MOUNTS
PA101 with WMVE-SW &
IME3PM-E Pole Mount for use with WMVE-SW &
IME3PM-E
IME3ICM-E In-ceiling mount, RAL 9003
IME3PM-E Pendant mount, RAL 9003
IMM-CM with WMVE-SW &
IME3PM-E Corner mount for use with WMVE-SW &
IME3PM-E
IME3EBAP-E Electrical box adapter
WMVE-SW Wall mount, 1.5 in. NPT, RAL 9003
IWM-SW Wall mount with cable feedthrough, RAL9003
IWM24-SW Wall mount with cable feedthrough, includes
integral 24 VAC, 100 VA transformer,
RAL9003
PP350/PP351 Parapet wall/roof mount, RAL9002
PP450/PP451 Parapet wall/roof mount, RAL9002
OPTIONAL ACCESSORIES
IME3LD-0E Smoked lower dome (environmental)
IME3LD-1E Clear lower dome (environmental)
IME3LD-0 Smoked lower dome (indoor)
IME3LD-1 Clear lower dome (indoor)
POWER SUPPLIES
WCS Series Outdoor, 24 VAC power supply
POE130-XT Single-port PoE Gigabit extender powered by
POE190-BT injector
POE130-AT (US or EU) Single-port PoE+ midspan with power cord
POE430-AT (US or EU) 4-port, 30W per port PoEmidspan with power
cord
POE1236-AT (US or EU) 12-port, 36W PoE midspan
POE2436-AT (US or EU) 24-port, 36W PoE midspan
