Brand:Pelco
Model:IFV222-1ERS 2.8MM
IFV523-1ERS 3.6MM

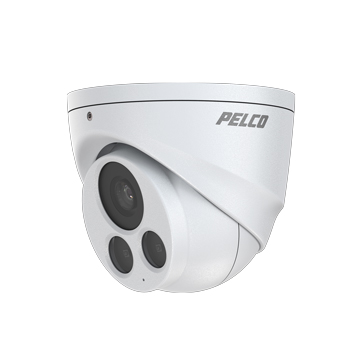

IFV222-1ERS, IFV523-1ERS Pelco Fixed Turret CameraProduct Features
Excellent low light performance
True Wide Dynamic Range
30 fps @ 1080p, 20 FPS @ 5 MP
Built-in IR illumination up to 30 M
H.265 and H.264 encoding with Pelco Smart Compression
IP66 for environmental ruggedness
Built-in MicroSD / SDHC / SDXC Card Slot for On-board Storage
Built-in Microphone
Models
Resolution Model Number Lens Description
2 MP IFV222-1ERS 2.8 mm Sarix Value Environmental IR Fixed Turret
5 MP IFV523-1ERS 3.6 mm Sarix Value Environmental IR Fixed Turret
Compatible Accessories—Mounting Kits
SRXV-WMS L-shaped Wall Bracket
IJTFV-PA Pendant Mounting Adapter
IFBV-JB Environmental Conduit Box
SRXV-WMP Pendant Wall Mount
IMV-WMJB Wall Mount Junction Box
SRXV-PP Pendant Extension Pipe
SRXV-PCF Pendant Ceiling Flange
SRXV-CM Corner Mount
SRXV-PLM Pole Mount
Technical Specifications Camera Features
Item Description
Image Sensor 1/2.9" Progressive CMOS (IFV222-1ERS); 1/2.7" Progressive CMOS
(IFV523-1ERS)
Maximum Resolution 1920x1080 (2MP) (IFV222-1ERS); 2560x1920 (5MP) (IFV523-1ERS)
Lens Type Fixed-focal
Focal Length 2.8 mm (IFV222-1ERS); 3.6 mm (IFV523-1ERS)
Aperture F2.0
Iris Type Fixed iris
Field of View IFV222-1ERS
109° (Horizontal)
59° (Vertical)
129° (Diagonal)
IFV523-1ERS
76° (Horizontal)
59° (Vertical)
100° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
Wide Dynamic Range Up to 120 dB. 100dB per IEC62676-5
Day/Night Yes with removable IR cut filter
IR Illumination Built-in IR illuminators, effective up to 30 meters with Adaptive IR
technology
Minimum Illumination 0.07 lux Color (IFV222-1ERS); 0.2 lux Color (IFV523-1ERS)
Pan Range 360°
Tilt Range 70°
Rotation Range 360°
