Brand:AXIS
Model:D201-S XPT Q6055
Lens Focal length 4.44 - 142.6 mm
Optical zoom 32
Horizontal field of view 62.8 - 2.23 °
Vertical field of view 36.8 - 1.3 °

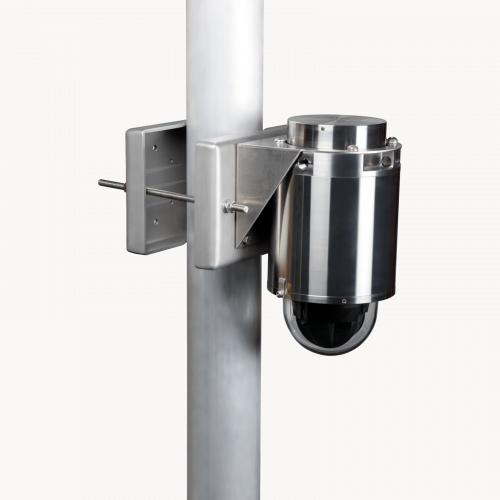

D201-S XPT Q6055 Explosion-Protected PTZ Network Camera
Real-time movement and control in hazardous areas
Certified for Class I/II/III, Division 1 and Zone 1/21
Cost-efficient installation with PoE
Low weight and profile, simple installation
Full HDTV 1080p with 32x optical zoom
D201-S XPT Q6055 Explosion-Protected PTZ Network Camera is an easy-to- install and easy-to-integrate dome-style camera. It delivers the sweeping overviews and superb zoomed-in detail you expect from a top-of-the-line PTZ camera from Axis. All wrapped up in a patented, stainless-steel housing that's certified for Class I/II/III Division 1 and Zone 1/21 for explosion-prone applications, so you can effectively monitor hazardous areas at a lower cost compared to traditional explosion-protected PTZ cameras.
D201-S XPT Q6055 is a lightning-fast PTZ camera with Guard Tour functionality, which makes it an excellent choice for monitoring vast areas. Plus it features 32x optical zoom and HDTV 1080p resolution, so it provides superb zoomed-in views of people and objects from a great distance. Focus recall gives you instantaneous clarity in low-contrast scenes. And Zipstream technology preserves all the important forensic detail you need, while lowering bandwidth and storage requirements by an average of 50% or more. In other words, D201-S XPT Q6055 has everything you expect from an Axis Q-line PTZ camera.
PoE-powered for plug and play installation, D201-S XPT Q6055 weighs less than a traditional explosion-protected PTZ. And that means significant savings because you won’t need electricians and a 3-person crew to install it. In particular, the camera’s low weight makes it easier to install and manage on oilrigs, where heavy winds present a challenge. The casing is prepared for American Petroleum Institute (API) DROP compliance, with additional safety wire for US offshore installations. All the moving parts of D201-S XPT Q6055 are protected inside its steel housing, so there are fewer possible points of failure, and troubleshooting is easier. The SFP slot in AXIS T8154 60 W SFP Midspan allows for long-distance fiber-optic connection.
D201-S XPT Q6055 comes with a number of built-in Axis analytic applications that help keep personnel and equipment safe. Enter/Exit detector, for example, can trigger an alarm if someone enters a restricted area. Analytics can also help you make smarter decisions about resource allocation and cut down on routine patrols, for example. Our partners also offer a wealth of additional advanced analytics applications that can be added to D201-S XPT Q6055. And thanks to an open platform and ONVIF compliance, D201-S XPT Q6055 can be easily integrated into any surveillance system.
Technical specifications
Models: D201-S XPT Q6055
Camera
Image sensor CMOS
Image sensor size 1/2.8
Lightfinder -
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.3 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Max video resolution 1920x1080
Max frames per second 60/50
Electronic image stabilization –
Lens
Focal length 4.44 - 142.6 mm
Optical zoom 32
Horizontal field of view 62.8 - 2.23 °
Vertical field of view 36.8 - 1.3 °
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG Yes
Network
PoE Class High PoE
Security
Signed firmware –
Secure boot –
TPM –
General
Remote focus –
Remote zoom –
Local storage (memory card slot) Yes
Outdoor Ready Yes
IP rating IP66
Power
Power (max) –
Power (average) –
DC input voltage –
AC input voltage –
D201-S XPT Q6055 ATEX, Class/Division, Class/Zone, IECEx 01480-001
