Brand：AXIS
Model：AXIS Q8685-E 0862-001
Lens Focal length 4.3 - 129 mm
Horizontal field of view 65.6 - 2 °
Vertical field of view 39 - 1.2 °

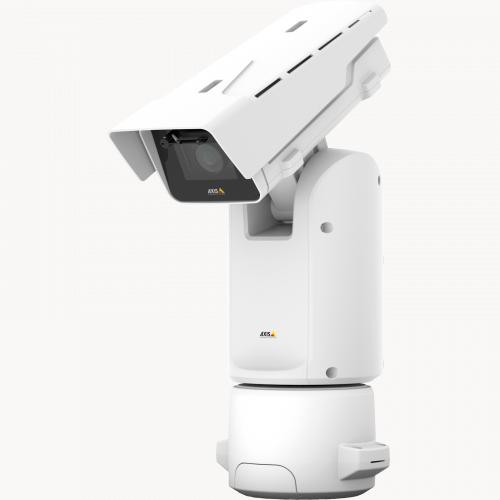

AXIS Q8685-E PTZ Network Camera
For completely unobstructed views and superb detail
360° pan and 135° tilt from ground to sky
Forensic details and focus recall
Long-distance network connection
Weather protection and remote maintenance
Easy installation
Mounts
AXIS T94J01A Wall Mount
AXIS T94N01G Pole Mount
AXIS T95A64 Corner Bracket
AXIS T99 Illuminator Bracket Kit A
AXIS TQ6901-E Adapter Mount Bracket
Power supply DIN PS24 480 W
Technical specifications
Models: AXIS Q8685-E 24 V AC/DC
Camera Image sensor CMOS
Image sensor size 1/2.8
Lightfinder -
Wide dynamic range Forensic Capture
Min illumination/ light sensitivity (Color) 0.2 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
General Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -50 to 55 °C
Outdoor Ready Yes
Vandal rating –
IP rating IP66
Designed for repaint Yes
Analytics
Autotracking version Autotracking 1
Orientation aid –
Video Max video resolution 1920x1080
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization Yes
Lens Focal length 4.3 - 129 mm
Horizontal field of view 65.6 - 2 °
Vertical field of view 39 - 1.2 °
Pan, Tilt, Zoom
Pan range 360 endless
Tilt range -90 to 45, -45 to 90
Guard tour preset position tour
Optical zoom 30
Digital zoom 12
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG Yes
Audio Audio Support –
Built-in microphone –
System Integration
Audio detection –
Active tampering –
Alarm inputs/outputs 4
Network PoE Class –
