Brand：AXIS
Model:AXIS Q1647 01051-001
Lens Focal length 3.9 - 10 mm
Horizontal field of view 110-44 °
Vertical field of view 59-24 °
Lens mount CS

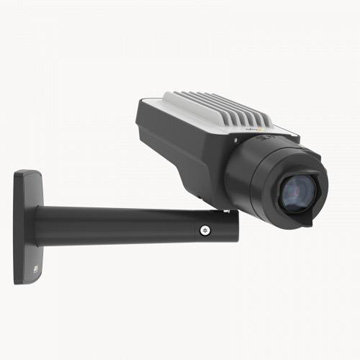

AXIS Q1647 Network Camera
5 MP video with 1/2" sensor and i-CS lens
5 MP at 25/30 fps
1/2'' sensor and i-CS lens
Electronic image stabilization (EIS)
Forensic WDR, Lightfinder and Zipstream
Included analytics
Technical specifications
Models: AXIS Q1647 / AXIS Q1647 Barebone
Camera
Image sensor CMOS
Image sensor size 1/2
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.12 lux
Min illumination/ light sensitivity (B/W) 0.02 lux
Video
Max video resolution 3072x1728
Max frames per second 50/60
Electronic image stabilization
Yes
Lens
Focal length 3.9 - 10 mm
Horizontal field of view 110-44 °
Vertical field of view 59-24 °
Lens mount CS
Replaceable lens
Yes
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support
Yes
Network
PoE Class 3
Wireless –
Security
Signed firmware
Yes
Secure boot –
General
Remote focus
Yes
Remote zoom
Yes
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature -20 to 60 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint –
Sustainability PVC free
Power
Power (max) 11.2 W
Power (average) 6.4 W
DC input voltage 8-28 V
Housings & cabinets
AXIS T93F10 Outdoor Housing
Robust and sleek housings with smart features
AXIS T93F20 Outdoor Housing
Robust and sleek housings with smart features
I/O devices
AXIS T8331 PIR Motion Detector
NAME AXIS REGION PART NUMBER
AXIS Q1647 Barebone AR, AU, BR, CN, EU, JP, KR, UK, US 01051-041
AXIS Q1647 Barebone IN 01051-143
AXIS Q1647 AR, AU, BR, CN, EU, JP, KR, UK, US 01051-001
AXIS Q1647 IN 01051-113
