Brand：AXIS
Model：AXIS Q1645 01222-001
Lens Focal length 3.9 - 10 mm
Horizontal field of view 109-42 °
Vertical field of view 58-23 °

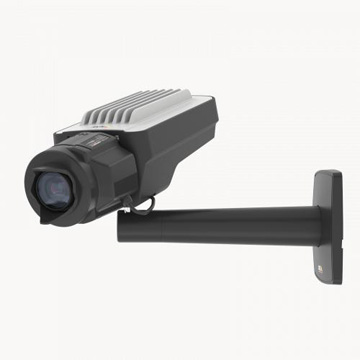

AXIS Q1645 Network Camera
High-speed video with 1/2" sensor and i-CS lens
HDTV 1080p at 100/120 fps
Unparalleled light sensitivity with 1/2" sensor
Electronic image stabilization (EIS)
Forensic WDR, Lightfinder and Zipstream
Included analytics
Technical specifications
Models: AXIS Q1645 / AXIS Q1645 Barebone
Camera
Image sensor CMOS
Image sensor size 1/2
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.02 lux
Min illumination/ light sensitivity (B/W) 0.004 lux
Video
Max video resolution 1920x1080
Max frames per second 100/120
Electronic image stabilization
Yes
Lens
Focal length 3.9 - 10 mm
Horizontal field of view 109-42 °
Vertical field of view 58-23 °
Lens mount CS
Replaceable lens
Yes
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support
Yes
Network
PoE Class 3
Wireless –
Security
Signed firmware
Yes
Secure boot –
General
Remote focus
Yes
Remote zoom
Yes
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature -20 to 60 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint –
Sustainability PVC free
Power
Power (max) 9.5 W
Power (average) 4.3 W
DC input voltage 8-28 V
NAME AXIS REGION PART NUMBER
AXIS Q1645 Barebone AR, AU, BR, CN, EU, JP, KR, UK, US 01222-041
AXIS Q1645 Barebone IN 01222-143
AXIS Q1645 AR, AU, BR, CN, EU, JP, KR, UK, US 01222-001
AXIS Q1645 IN 01222-113
