FUEL SYSTEM APPLICATION
Yulou currently has a variety of fuel and water level detection solutions,and can quickly provide customers with customized solutions.Yulou's fuel and water level sensors and various instruments have won the trust of many well-known customers.

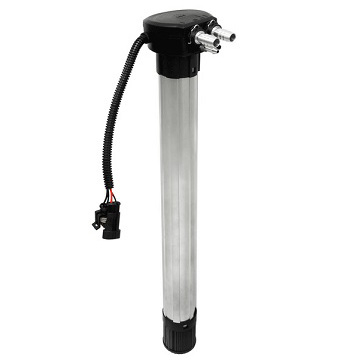

SAP fuel sensor adopts the principle of reed switch to measure the liquid level. It is a kind of sensor that uses magnetic field to control the on-off of contacts in the reed switch. It is used to measure the fuel level of the fuel tank, and the measurement accuracy can be customized according to requirements.
Product Descriptions
Main material: aluminumLength
range: 230 ～ 900mm
Installation: toothed bayonet
Connector:optional Amp, Delphi, Tyco, or other brands
Output information:resistance signal, voltage signal, current signal.
Alarm switch rated current: 500mA
Rated power:125 mW
Accuracy range:10~40mm
Working temperature:-40 ~ + 85 ℃
Protection level: IP67
Function Descriptions
1. Level detection
2. Level alarm
3. Parking heating
4. Suck back oil
5. Fuel filtration
6. Balance the air pressure inside and outside the cabinet
7. Safety explosion-proof
