Brand:AXIS
Model:AXIS Q3615-VE 0743-009
Lens Focal length 4.1 - 9 mm
Horizontal field of view 100 - 46 °
Vertical field of view 60-29 °

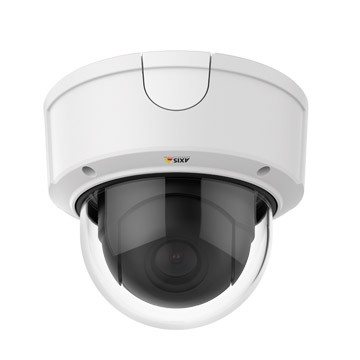

AXIS Q3615-VE Network Camera
Outstanding image quality with easy installation and remote adjustment
Exceptional video quality with 1/1.9” sensor
Lightfinder and WDR – Forensic Capture
HDTV 1080p at 30 fps with WDR, up to 60 fps without WDR
Remote PTRZ capability for efficient installation and readjustment
Zipstream – saves bandwidth without sacrificing quality
Technical specifications
Models: AXIS Q3615-VE
Camera
Image sensor CMOS
Image sensor size 1/1.9
Sensor size in megapixel 2.3
Lightfinder Lightfinder
Wide dynamic range Forensic Capture
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0.02 lux
Video
Max video resolution 1920x1200
Max frames per second 50/60
Day and Night functionality
Yes
Electronic image stabilization
Yes
Lens
Focal length 4.1 - 9 mm
Horizontal field of view 100 - 46 °
Vertical field of view 60-29 °
Pan, Tilt, Zoom
Remote PTRZ
Yes
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support –
Built-in microphone –
Network
PoE Class 3
Wireless –
Security
Signed firmware
Yes
Secure boot –
General
Remote focus
Yes
Remote zoom
Yes
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature -40 to 60 °C
Outdoor Ready
Yes
Vandal rating IK10
IP rating IP66, IP67, IP6K9K
Designed for repaint
Yes
Sustainability PVC free
Cables & connectors
AXIS T8129 PoE Extender
The smart solution for covering distances
AXIS T8129-E Outdoor PoE Extender
Robust, outdoor-ready solution for covering distances
Edge storage
AXIS Surveillance Card 256 GB
High endurance micro SDXC? card
AXIS Surveillance Card 64 GB
High endurance microSDXC? card
Housings & cabinets
AXIS T98A17-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
Requires additional accessory
AXIS T98A17-VE Surveillance Cabinet
Robust cabinet for easy installation of critical system equipment.
Illuminators
AXIS T90D20 IR-LED
High-performance infrared LED illuminator with ease of installation
AXIS T90D20 PoE IR-LED
High-performance infrared LED illuminator with ease of installation
AXIS T90D25 PoE W-LED
High-performance white LED illuminator with ease of installation
AXIS T90D25 W-LED
High-performance white LED illuminator with ease of installation
AXIS T90D30 IR-LED
High-performance infrared LED illuminator with ease of installation
AXIS T90D30 PoE IR-LED
High-performance infrared LED illuminator with ease of installation
AXIS T90D35 PoE W-LED
High-performance White LED illuminator with ease of installation
AXIS T90D35 W-LED
High-performance white LED illuminator with ease of installation
AXIS T90D40 IR-LED
High-performance infrared LED illuminator with ease of installation
Media converters
AXIS T8604 Media Converter Switch
Converts Ethernet to fiber 12 V DC
AXIS T8606 Media Converter Switch 24 V DC
Converts Ethernet to fiber 24 V DC
AXIS T8640 PoE+ over Coax Adapter Kit
Cost-efficient migration to network video for smaller installations
AXIS T8645 PoE+ over Coax Compact Kit
Compact, cost-efficient single-channel migration to IP
AXIS T8648 PoE+ over Coax Blade Compact Kit
Compact, cost-efficient multi-channel migration to IP
AXIS T98A17-VE Media Converter Cabinet A
Robust, pre-assembled cabinet for easy fiber installation
Mounts
AXIS ACI Conduit Adapter 3/4″ NPS
AXIS T91B47 Pole Mount
For different pole diameters
AXIS T91B50 Telescopic Ceiling Mount
Telescopic ceiling mount with swivel action
AXIS T91B51 Ceiling Mount
Ceiling mount with swivel action for low-ceilinged environments
AXIS T91B63 Ceiling Mount
AXIS T91B67 Pole Mount
Pole mount for fixed dome cameras
AXIS T91D61 Wall Mount 1.5” NPS
Wall mount with 1.5″ NPS thread
AXIS T91D62 Telescopic Parapet Mount
Parapet installation with telescopic flexibility
AXIS T91E61 Wall Mount
For Axis fixed dome pendant kits
AXIS T91H61 Wall Mount
Quick connection and room for more
Requires additional accessory
AXIS T94R01B Corner Bracket
For outdoor and indoor installations
AXIS T94V01C Dual Camera Mount
Back-to-back camera installation made easy
AXIS T94V01D Pendant Kit
AXIS T94V02D Pendant Kit
AXIS TQ3201-E Recessed Mount
AXIS TQ6501-E Parapet Mount
Parapet mount with conduit side entry
Power
AXIS T8061 Ethernet Surge Protector
Protects outdoor devices from power surges
AXIS T8120 Midspan 15 W 1-port
Switches
AXIS T8504-E Outdoor PoE Switch
Managed, plug-and play outdoor switch
AXIS T8508 PoE+ Network Switch
8 port switch for efficient network management
AXIS T8516 PoE+ Network Switch
16 port switch for efficient network management
AXIS T8524 PoE+ Network Switch
24 port switch for efficient network management
Tools & extras
AXIS Safety Wire 3 m
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q3615-VE CN 0743-009
AXIS Q3615-VE AR, AU, BR, EU, JP, KR, UK, US 0743-001
