Brand:AXIS
Model:AXIS Q6128-E
Lens Focal length 3.9 - 46.8 mm
Horizontal field of view 70.7 - 6.2 °
Vertical field of view 43.5 - 3.5 °

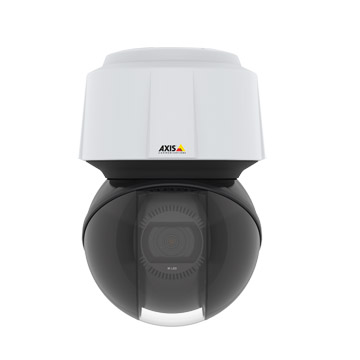

AXIS Q6128-E PTZ Network Camera
AXIS Q6128-E PTZ Network Camera
High-speed 4K PTZ with Sharpdome technology
4K resolution at 30 fps
Sharpdome technology with speed dry
Electronic image stabilization
Pan performance up to 700°/s
Repaintable
AXIS Q6128-E Network Camera delivers great image quality in 4K resolution. All in an outdoor-ready camera that delivers the kind of wide-area coverage and flawless detail you expect from a high-performance PTZ from Axis. The camera is ideal for sports stadiums, squares, street junctions, open parking places and large open areas in shopping malls.
Axis IP Camera - 4K image of a square
Excellent overview and details in UltraHD
AXIS Q6128-E is a high-performance PTZ camera offering (8.3 MP) 4K resolution at 30 frames per second, 12x optical zoom and autofocus. The 4K resolution provides four times as much detail as the standard HDTV 1080p resolution, improving the video quality significantly. To save bandwidth, you can view live video in HDTV 1080p while recording in 4K for forensic purposes.
Axis IP Camera Q6155-E has Axis Sharpdome technology with Speed Dry
Axis’ Sharpdome technology and Speed Dry function
Axis’ Sharpdome technology provides full scene fidelity and perfect image quality in all directions – above as well as below the horizon – making AXIS Q6128-E suitable also for uneven terrain. The Sharpdome technology includes Axis’ unique Speed Dry function that gives clear images in rainy weather. It can also simplify dome cleaning, allowing for more efficient methods such as high pressure cleaning.
Radumla warehouse doors
Optimized for maximum reliability
AXIS Q6128-E is designed for reliable, weatherproof installations with built-in protection against dust, strong water jets, rain, snow and sunlight (IP66 and NEMA 4X rating), and impact resistance (IK08 rating). The camera features defogging and is protected by shock detection that sends an alarm if someone tries to vandalize it.
Technical specifications
Models: AXIS Q6128-E 50 Hz / AXIS Q6128-E 60 Hz
Camera
Image sensor CMOS
Image sensor size 1/2.3
Sensor size in megapixel 8.0
Lightfinder -
Wide dynamic range –
Min illumination/ light sensitivity (Color) 0.45 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
General
Built-in IR –
OptimizedIR –
Local storage (memory card slot)
Yes
Operating temperature -50 to 50 °C
Outdoor Ready
Yes
Vandal rating IK08
IP rating IP66
Designed for repaint
Yes
Analytics
Autotracking version Autotracking 1
Orientation aid –
Video
Max video resolution 3840x2160
Max frames per second * 50 / 60
Day and Night functionality
Yes
Electronic image stabilization
Yes
Lens
Focal length 3.9 - 46.8 mm
Horizontal field of view 70.7 - 6.2 °
Vertical field of view 43.5 - 3.5 °
Pan, Tilt, Zoom
Pan range 360 endless
Tilt range +20 to -90
Guard tour preset position tour
Optical zoom 12
Digital zoom 12
Compression
Zipstream –
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support –
Built-in microphone –
System Integration
Audio detection –
Active tampering –
Alarm inputs/outputs 0/0
Network
PoE Class 4
Security
Signed firmware –
Secure boot –
TPM –
