Brand:Huawei
Model:NVR800-B16

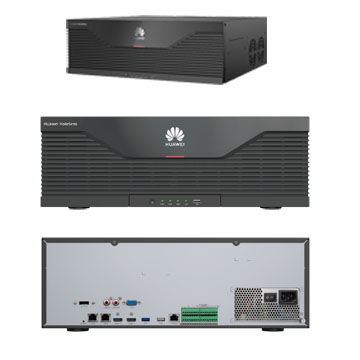

NVR800-B16 64-channel network video recorder (16 disks)
High performance and flexibility
Easy deployment and maintenance
Security and reliability
High performance and flexibility
64-channel network video access and 400 Mbit/s video input bandwidth
Two HDMI ports and one VGA port for simultaneous 4K HD output
16 SATA ports and one eSATA port
Works with Huawei SDCs to provide intelligent capabilities, including target trustlist-based access control, blocklist-based alert, stranger recognition, target search, perimeter detection, regular customer analysis, intelligent attendance, and parking violation detection.
Up to 8-channel simultaneous playback and reverse playback
Preview, storage, and playback of 4K HD network video
Playback of video from external USB hard drive
Easy deployment and maintenance
Automatic discovery and configuration
Access to the platform and mobile app through HUAWEI CLOUD
Quick device registration and access using QR codes
User-friendly user interface
Security and reliability
Locking of important recordings in file format
Embedded Linux operating system, ensuring 24/7 stable running and protecting the system from hackers and viruses
Preview 1/4/6/8/9/10/12/13/14/16/17/19/20/22/25/32/36/64 panes
Disks 16 disks
Decoding 8MP (4K): 4-channel @ 30 fps 5MP: 9-channel @ 20 fps 4MP: 8-channel 30 fps 2MP (1080p): 16-channel @ 30 fps 720p: 32-channel @ 30 fps
Playback/Download 128 Mbit/s
Video forwarding 400 Mbit/s forwarding
Recording mode Manual recording, scheduled recording, motion detection-triggered recording, and recording triggered by I/O alarms
Behavior analysis Works with Huawei SDCs to implement intelligent capabilities, including motion detection, intrusion detection, tripwire crossing detection, audio abnormality detection, lens blocking detection, area entry/exit detection, fast movement detection, loitering detection, two-way head counting, queue length detection, head counting in an area, and mask detection.
Video input 64 channels, 400 Mbit/s access
Recording playback 16-channel simultaneous playback Playback and playback frame by frame; controls: fast forward (2x, 4x, 8x, or 16x) and slow-down (1/16x, 1/8x, 1/4x, or 1/2x)
Video input 64 channels, 400 Mbit/s access
Video forwarding 400 Mbit/s forwarding
Playback/Download 128 Mbit/s
HDMI One HDMI 2.0 port; resolutions: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440, 3840 x 2160 One HDMI 1.4 port; resolutions: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080, 2560 x 1440, 3840 x 2160
VGA One VGA port; resolutions: 1024 x 768, 1280 x 720, 1280 x 1024, 1440 x 900, 1920 x 1080
Decoding 8MP (4K): 4-channel @ 30 fps 5MP: 9-channel @ 20 fps 4MP: 8-channel 30 fps 2MP (1080p): 16-channel @ 30 fps 720p: 32-channel @ 30 fps
Preview 1/4/6/8/9/10/12/13/14/16/17/19/20/22/25/32/36/64 panes
Memory 32 GB DDR3
Processor 32-bit multi-core high-performance processor
Disks 16 disks
Disk port SATA 3.0
Disk type 8 TB per port
Recording mode Manual recording, scheduled recording, motion detection-triggered recording, and recording triggered by I/O alarms
Recording playback 16-channel simultaneous playback Playback and playback frame by frame; controls: fast forward (2x, 4x, 8x, or 16x) and slow-down (1/16x, 1/8x, 1/4x, or 1/2x)
Search mode By time, recording type, or AI event
Download mode In batches or by segment
Network protocol TCP (reliable transmission), UDP (transmission protocol), RTP (data protocol), RTSP (real-time transmission protocol), HTTP (hypertext transmission), DNS (domain name resolution service), SNMP (simple network management), NTP (network time calibration), SMTP (email service), and DHCP (automatic IP address obtaining)
Web access Compatible with Internet Explorer 9, 10, and 11
P2P HUAWEI CLOUD service Access to HUAWEI CLOUD services and remote access through the mobile app
Device access Huawei SDK and ONVIF
Audio format G.711a/G.711u
Video format H.264/H.265
Behavior analysis Works with Huawei SDCs to implement intelligent capabilities, including motion detection, intrusion detection, tripwire crossing detection, audio abnormality detection, lens blocking detection, area entry/exit detection, fast movement detection, loitering detection, two-way head counting, queue length detection, head counting in an area, and mask detection.
Target reference libraries 16
Total target library capacity 50,000
Structured data storage Structured vehicle data storage
Log download Operation logs, system logs, alarm logs, parameter setting logs, recording logs, SDC SDK logs, and public cloud logs; support for intelligent log check and log storage
Management mode Web and LDU
Alarm port 16 alarm-in ports and 4 alarm-out ports
Audio output 1 RCA port
Audio input 1 RCA port
Serial port 1 x half-duplex RS-485 port 1 x full-duplex RS-485 port
USB port 3 x USB ports (1 front USB 2.0 port, 1 rear USB 2.0 port, and 1 rear USB 3.0 port)
Network port 2 x 100/1000 Mbit/s Ethernet ports
Operating temperature –10°C to +55°C
Operating humidity 10% to 90%
Power consumption (without hard disk) ≤ 35 W
Weight (without hard disk) 9.48 kg
Chassis 3 U
Dimensions 146 mm x 440 mm x 460 mm (H x W xD)
Power supply Input: 100–240 V AC; 50–60 Hz
Outside China RoHS and WEEE
China Type inspection report, GB/T 28181, CCC, CQC, and Identification and Classification Report for Air Transport of Goods
