Brand：AXIS
Model：AXIS M1124
Lens Focal length 3 - 10.5 mm

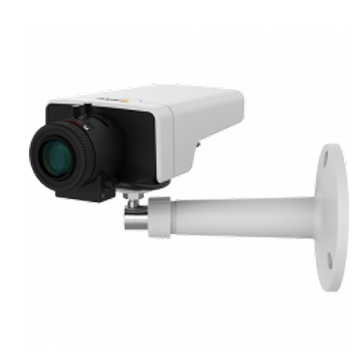

AXIS M1124 0747-009 Network Camera
DISCONTINUED PRODUCT.Recommended replacements:AXIS M1134
Technical specifications
Models: AXIS M1124 / AXIS M1124 Barebone
Camera
Image sensor CMOS
Image sensor size 1/2.8
Sensor size in megapixel 1.3
Lightfinder -
Wide dynamic range Forensic Capture
Min illumination/ light sensitivity (Color) 0.25 lux
Min illumination/ light sensitivity (B/W) 0.05 lux
Video
Max video resolution 1280x720
Max frames per second 25/30
Electronic image stabilization –
Lens
Focal length 3 - 10.5 mm
Horizontal field of view 91 - 32 °
Vertical field of view 49 - 18 °
Lens mount CS
Replaceable lens
Yes
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support –
Network
PoE Class 2
Wireless –
Security
Signed firmware
Yes
Secure boot –
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature -20 to 50 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint –
Sustainability PVC free
Power
Power (max) –
Power (average) –
DC input voltage 8-28 V
