Brand：AXIS
Model：ExCam XF Q1645
Lens Focal length 3.9 - 10 mm

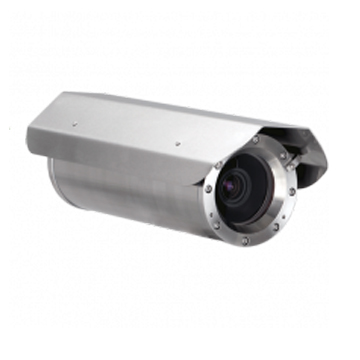

ExCam XF Q1645 01562-001 Explosion-Protected Network Camera
Every detail counts in hazardous areas
Certified for ATEX, IECEx, EAC Ex, IA; Zones 1, 2, 21 and 22; Groups IIC and IIIC
HDTV 1080p at 100/120 fps
Unparalleled light sensitivity with 1/2" sensor
Electronic image stabilization (EIS)
Included analytics
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: ExCam XF Q1645
Camera
Image sensor CMOS
Image sensor size 1/2
Sensor size in megapixel 2.0
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.02 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Video
Max video resolution 1920x1080
Max frames per second 100/120
Electronic image stabilization
Yes
Lens
Focal length 3.9 - 10 mm
Optical zoom -
Horizontal field of view 85-42 °
Vertical field of view 47-23 °
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Network
PoE Class 3
Security
Signed firmware
Yes
Secure boot –
TPM –
General
Remote focus
Yes
Remote zoom
Yes
Local storage (memory card slot)
Yes
Outdoor Ready
Yes
IP rating IP68
Power
Power (max) 40.0 W
Power (average) –
DC input voltage 22-26 V
AC input voltage –
