Brand:AXIS
Model:AXIS M3204-V 0346-009

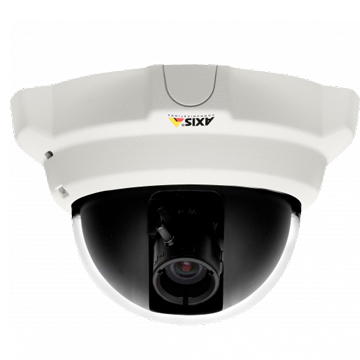

AXIS M3204-V 0346-009 Fixed dome with discreet and vandal-resistant casing. Varifocal 2.8-10 mm lens with fixed iris. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 720p or 1 MP resolution at 30 fps. Video motion detection and active tampering alarm. Power over Ethernet. Midspan not included.
DISCONTINUED PRODUCT.Recommended replacements:AXIS P3245-V
Technical specifications
Models: AXIS M3204-V
Camera
Image sensor CMOS
Image sensor size 1/4
Sensor size in megapixel 1.0
Lightfinder -
Wide dynamic range –
Min illumination/ light sensitivity (Color) 0.90 lux
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 1280x800
Max frames per second 30
Day and Night functionality –
Electronic image stabilization –
Lens
Focal length 2.8 - 10 mm
Horizontal field of view 80 - 22 °
Vertical field of view 48 - 14 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream –
H.264 Baseline
H.265 –
Motion JPEG
Yes
Audio
Audio Support –
Built-in microphone –
Network
PoE Class 2
Wireless –
Security
Signed firmware –
Secure boot –
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot) –
Operating temperature 0 to 50 °C
Outdoor Ready –
Vandal rating –
IP rating -
Designed for repaint –
Sustainability –
