Brand:SONY
Model:SNC-ER585

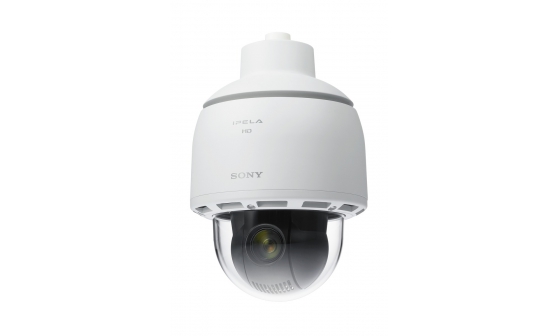

SNC-ER585 Sony 1080P Outdoor PTZ Camera
Accessories
UNI-CMA1
Aluminium Corner Mount Adaptor
UNI-RMB1
Parapet mount bracket
SCA-S30
High quality active outdoor loudspeaker for use with Sony's IP cameras
UNI-PMA1
Pole mount adaptor
YT-LDR632S
Smoked dome cover for network cameras
UNI-WMB3
Wall mount bracket for PTZ dome mount security camera housings
UNI-WMB1
Gooseneck wall mount
UNI-PBU1
Power block unit
SD Cards For IP Security Cameras
Sony’s Edge Storage Solution for IP Security Cameras
Specifications
Camera
Image Sensor1/2.8-type Exmor CMOS sensor
Number of Effective PixelsApprox. 3.27 Megapixels
Sync SystemInternal synchronization
Minimum Illumination (50 IRE)Color: 1.7 lx (F1.6, AGC On, 1/30 s, 50 IRE)
B/W: 0.3 lx (F1.6, AGC On, 1/30 s, 50 IRE, Night Mode)
Minimum Illumination (30 IRE)Color: 1.2 lx (F1.6, AGC On, 1/30 s, 30 IRE)
B/W: 0.18 lx (F1.6, AGC On, 1/30 s, 30 IRE, Night Mode)
Dynamic RangeTheoretically 86 dB with DynaView Technology
S/N Ratio (Gain 0 dB)More than 50 dB (Gain 0 dB)
GainAuto/Manual (-3 to +28 dB)
Shutter Speed1/1 s to 1/10,000 s
Exposure ControlFull auto, Shutter priority, Iris priority, Manual
White BalanceAuto, Advanced Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium vapour lamp
LensAuto-focus zoom lens
Powered ZoomYes
Zoom RatioOptical zoom 30x
Digital zoom 12x
Total zoom 360x
Powered FocusYes
Auto FocusYes
Horizontal Viewing Angle59.5° to 2.1°
Vertical Viewing Angle33.4° to 1.2°
Focal Lengthf = 4.3 mm to 129.0 mm
F-NumberF1.6 (Wide) to F4.7 (Tele)
Minimum Object Distance300 mm (Wide) to 1200 mm (Tele)
Pan/Tilt Angle (powered)360 ° endless rotation/210 °
Pan Speed300 °/s (max.)
Tilt Speed300 °/s (max.)
Number of Preset Positions256
Number of Tour Programs5
Camera Features
Day/NightTrue D/N
Wide-DDyna View
Noise ReductionNR
Image StabilizerElectronic
Privacy Masking (number)24
Privacy Masking (shape)Quadrangle
Privacy Masking (color/effect)Opaque 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic
Edge StorageYes
Voice AlertYes
Vandal ResistantIK10
Ingress ProtectionIP66
Superimpose Number3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for a logo mark
Superimpose LanguageEnglish
Menu LanguageEnglish, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai, Turkish, Polish
Smartphone viewerYes
Video
Resolution1920 x 1080, 1680 x 1056, 1280 x 1024, 1440 x 912, 1280 x 960, 1376 x 768, 1280 x 800, 1280 x 720, 1024 x 768, 1024 x 576, 800 x 600, 800 x 480, 768 x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192
Compression FormatH.264, MPEG-4, JPEG
Maximum Frame RateH.264: 30 fps (1920 x 1080) *1
MPEG-4: 30 fps (1440 x 912) *1
JPEG: 30 fps (1440 x 912) *1
Bitrate Control ModeCBR/VBR (selectable)
Range of Bit Rate Setting64 Kbps to 8 Mbps
Adaptive Rate ControlH.264
Bandwidth ControlJPEG
Multi streaming CapabilityDual streaming *2
Number of Clients5
Letter BoxYes (1920x 1080 mode, aspect ratio: 16:9)
Intelligent Video/Audio Analytics
Analytics ArchitectureDEPA
Intelligent Motion DetectionYes
Tamper AlarmYes
Advanced Audio DetectionYes
Audio
Compression FormatG.711/G.726
System Requirements
Operating SystemWindows XP (32 bit) Professional Edition
Windows Vista (32 bit) Ultimate, Business Edition
Windows 7 (32/64 bit) Ultimate, Professional Edition
ProcessorIntel Corei7 2.8 GHz or higher
Memory2 GB or more
Web BrowserMicrosoft Internet Explorer Ver. 7.0, Ver. 8.0, Ver. 9.0
Firefox Ver. 3.5 (plug-in free viewer only)
Safari Ver. 4.0 (plug-in free viewer only)
Google Chrome Ver.4.0 (plug-in free viewer only)
SNC toolboxYes
SNC toolbox mobileYes
Network
ProtocolsIPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP, SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Number of IP Address/Mac ADDRESS1
QoSDSCP
Multicast Streaming SupportYes
ONVIF ConformanceProfile S
AuthenticationIEEE802.1X
Interface
Microphone InputMini jack (monaural), MIC IN: 2.5 V DC plug-in power
Line OutputMini jack (monaural) Maximum output level: 1 Vrms
Network Port10BASE-T/100BASE-TX (RJ-45)
Alarm Input (Sensor Input)x2 (normally open/normally closed configurable)
Alarm Outputx2, AC 24V/DC 24V, 1 A (mechanical relay outputs electrically isolated from the camera)
Card SlotsSD x 1
Confirmed SD Card TypeSDHC (Max. 32 GB)
General
Power RequirementsAC 24 V
Power ConsumptionHeater ON: 76 W max., Heater OFF: 26 W max.
Operating Temperature-40℃ to +60℃
-40°F to +140°F
Cold Start Temperature-40℃ to +60℃
-40°F to +140°F
Storage Temperature-20 ℃ to + 60 ℃
-4 °F to + 140 °F
Operating Humidity20 % to 80 %
Storage Humidity20 % to 95 %
Built-in HeaterYes
Heater Working Temperature5 °C or less
41 °F or less
Dimensions *3φ222.0 mm x 324.1 mm
φ8 3/4 inches x 12 7/8 inches
MassApprox. 4.3 kg
Approximate 9 lb 8 oz
External MaterialDome cover: PC
Top sunshade: PC
Coupling: ADC12
Top cabinet: ADC12
Sun shade: PC
Dome flange: ADC12
External ColorTop sunshade: 6.4GY 8.0/0.3
Coupling: 3.6GY 8.4/0.3
Top cabinet: 3.6GY 8.4/0.3
Sun shade: 6.4GY 8.0/0.3
Dome flange: 3.6GY 8.4/0.3
Safety RegulationsJATE Technical standard (LAN)
UL2044, IEC60950-1 (CB)
VCCI (Class A), FCC (Class A), IC (Class A)
Emission: EN55022 (Class A) + EN50130-4
Immunity: EN55022 (Class A) + EN55024
Emission: AS/NZS CISPR22 (Class A)
C-Tick Class A
Russia GOST-R
KCC
Supplied AccessoriesInstallation Manual (1)
Dome cover (1)
Top sunshade (1)
Coupling (1)
Wire fxing belt (1) (except China models)
Wire bracket (1) (except China models)
Bolts (2)
Power supply connector (1)
I/O harness (1)
Harnes band (1)
Band mount (1)
Notes
*1When using DynaView technology, the maximum frame rate becomes 15 fps
*2Dual streaming (Any combination with JPEG/MPEG-4/H.264, including multiple streams of the same format)
*3The values for dimensions are approximate.
