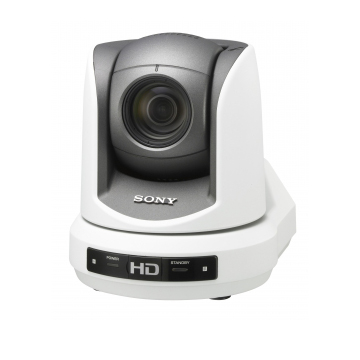

BRC-Z330 1/3-inch CMOS sensor SD / HD robotic camera

Brand:SONY

Model:BRC-Z330

Detail

BRC-Z330 1/3-inch CMOS sensor SD / HD robotic camera
Accessories

RM-IP10
IP remote control panel for BRC cameras

BRBK-IP10
IP remote control option board for BRC-H900

BRBK-HSD2
HD / SD-SDI output card for BRC-H900 and BRC-Z330 robotic cameras

BRBK-SA1
Analogue SD output card for BRC-H900P and BRC-Z330 robotic cameras

RM-BR300
Remote control unit for BRC series cameras

CCFC-S200
200m Single Mode Optical-fiber Cable to connect BRC-H900 and BRC-Z330 cameras (fitted with the optional BRBK-SF1 card) to BRU-SF10

Specifications

Camera

Image Sensor

1/3-type CMOS

Image Sensor (Number of Effective Pixels)

Approx. 2.16 Megapixels

Signal System

60 Hz: 1080/59.94i, 720/59.94P, NTSC

Sensitivity

F4.2 (Not to be published)

Minimum Illumination (50IRE)

6 lx (50IRE, F1.6, +24 dB)

Horizontal Resolution

800 TV line (Analog) (Not to be published)

S/N Ratio

50 dB

Gain

Auto/Manual (-3 dB to +24 dB and Hyper Gain)

Shutter Speed

1/10,000 s to 1/60 s or 1/10,000 s to 1/50 s

Exposure Control

Auto, Manual, Priority mode (shutter priority,Gain priority & iris priority), EV compensation, Color AE

Color AE Function

Off/Narrow/STD/Wide switchable in menu

White Balance

Auto1/Auto2/Indoor/Outdoor/One-push/Manual

Optical Zoom

18x

Digital Zoom

Focusing System

Auto/Manual

Horizontal Viewing Angle

55.1°(Wide-end)

Focal Length

F1.6 (Wide), F2.2 (Tele)
f=4.6 mm to 82.8 mm

Minimum Object Distance

500 mm (Wide, Limiter On)
100 mm (Wide, Limiter Off)
1,500 mm (Tele)

Pan/Tilt Angle

Tilt: +90°/-30°
Pan: ±175°

Pan/Tilt Speed

Tilt: 0.25° to 60°/s
Pan: 0.25° to 60°/s

Preset Position

Camera Features

Auto ICR

Wide-D

Image Stabilization

Image Flip

On/Off

ND Filter

Off/ 1/4 / 1/16 switchable in menu

Color Gain

-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6, +7

Color Hue

-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6, +7

Color Matrix

ON/OFF

Color Detail

Off/Narrow/STD/Wide switchable in menu

Skintone Detail

Gamma

Normal/Cinema

Gamma Level

Black

Black Gamma

Knee Point

Auto/Low/Mid/High/Off switchable in menu

Knee Slope

Knee Sat Level

Auto Focus Assist Function

On/Off

Flicker Cancel

On/Off

B&W

On/Off

Color Bar

On/Off

Interface

HD Video Output

Component (Y/Pb/Pr) or RGB, HD, VD or SYNC

SD Video Output

Composite, Y/C

Camera Control Interface

RS-232C/RS-422
(VISCA)

External Sync. Input

Yes

General

Power Requirements

DC 10.8 V to 13.2 V

Power Consumption

Max 18 W (without optional cards)

Operating Temperature

32 °F to 104 °F
0 °C to 40 °C

Storage Temperature

-4 °F to +140 °F
-20 °C to +60 °C

Dimensions (W x H x D) *[1]

6 3/8 x 7 3/8 x 7 5/8 inches
160.8 x 186 x 193.4mm

Mass

4 lb 4 oz
1.9 kg

Optional Card Slot?

Yes

Body Color

White

Size of Screw Hole for Tripod

1/4-20UNC

Mountable Angle

±15°

Ceiling Mount

Yes

Supplied Accessories

Wire rope (1)
Screws(M4 x 8) (1)
Screws(M3 x 8) (7)
RS-422 connector plug (1)
Operating instructions (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
AC power cord (1)
AC power adaptor (1)

Notes

Note

*[1] The values for dimensions are approximate.
