Brand:AXIS
Model:AXIS I7010-VE
weight:890g

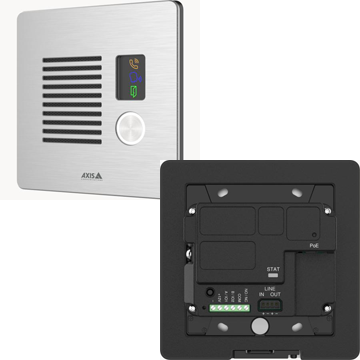

AXIS I7010-VE Network Intercom
Compact, extremely robust audio intercom
SPL 92dB, echo cancellation, and noise reduction
Anti-ligature, vandal-resistant IK10-rated
Compatible with 2-gang installation boxes
Open platform for easy integration
Built-in cybersecurity with Axis Edge Vault
AXIS I7010-VE Network Intercom AR, AU, CN, EU, IN, JP, KR, UK, US 02875-001
With 92dB SPL, this robust intercom delivers great audio quality with echo cancellation and noise reduction. Featuring
an anti-ligature design, it helps prevent self-harm, ideal in high security environments. And it doesn’t include a camera,
so privacy is always guaranteed. IP66/IP69-rated, it comes with a vandal-resistant IK10-rated casing and offers flexible
installation indoors and outdoors. Easy-to-install, it fits into 2-gang installation boxes. It’s also easy to integrate
with Axis and third-party VMS systems. A mobile app lets you grant access using your mobile device. Furthermore,
Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information
from unauthorized access.
> SPL 92dB, echo cancellation, and noise reduction
> Anti-ligature, vandal-resistant IK10-rated
> Compatible with 2-gang installation boxes
> Open platform for easy integration
> Built-in cybersecurity with Axis Edge Vault
System on chip (SoC)
Model CV25
Memory 2 GB RAM, 1 GB Flash
Audio
Audio features Echo cancellation, noise reduction, wind reduction, beamforming
Audio streaming Two-way (full duplex)
Audio input 2x built-in microphones (can be disabled), line input
Audio output Built-in speaker – max 92 dBSPL (at 1 m / 39 in)
Line output
Audio encoding LPCM 16 kHz, AAC 8/16 kHz, G.711 A-law, G.711 μ-law, G.722,
G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
Configurable bitrate
Lock control
Lock integration Integration with AXIS A9801 Security Relay: 350 mA at 12 V DC
Integration with OSDP reader
Integrated entry list with up to 50 credentials
Network
protocols
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa,QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour),UPnP®
, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS,RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP,DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog
(RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf),
IEEE 802.1X (EAP-TLS), IEEE 802.1AR
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX®, metadata
and AXIS Camera Application Platform (ACAP); specifications at
axis.com/developer-community.
One-click cloud connection
VoIP Support for Session Initiation Protocol (SIP) for integration with
Voice over IP (VoIP) systems, peer to peer or integrated withSIP/PBX.
Tested with various SIP software such as Cisco and Grandstream
Tested with various PBX software such as Cisco, Avaya and Asterisk
AXIS Parallel Call Forking, AXIS Sequential Call Forking
Supported SIP features: secondary SIP server, IPv6, SRTP, SIPS,
SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN, TURN),
contact list, parallel call forking, sequential call forking
Supported codecs: PCMU, PCMA, Opus, L16/16000, L16/8000,
speex/8000, speex/16000, G.726-32, G.722
Dimensions For the overall product dimensions, see the dimension drawing
in this datasheet.
Weight 890 g (2.0 lb)
Box content Intercom, installation guide, RESISTORX® L-key, terminal block
connector, owner authentication key
Optional
accessories
AXIS TI8202 Recessed Mount
AXIS TI8602 Wall Mount
AXIS TI8603 Conduit Adapter
AXIS TI8906 Glass Replacement Kit
AXIS TI8905 Face Plate Replacement
AXIS A9801 Security Relay
For more accessories, go to axis.com/products/axis-i7010-ve#accessories
