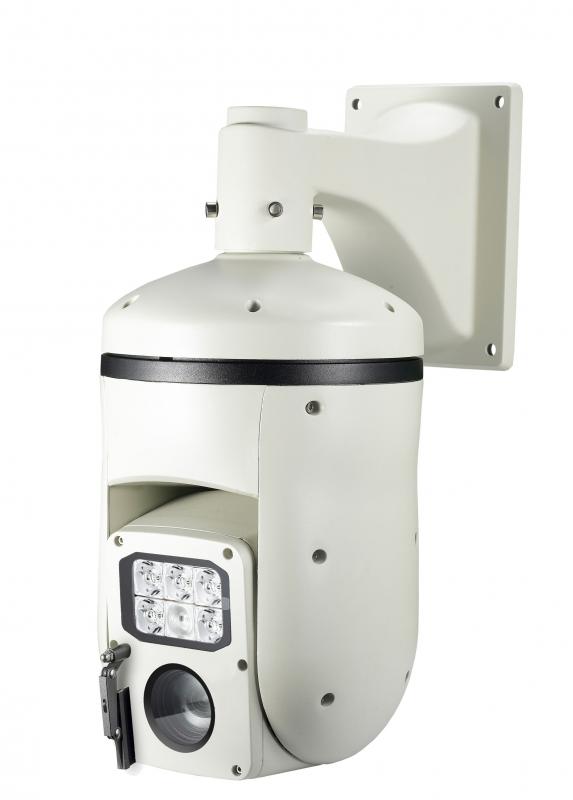

Model:1783-SDI
weight:9.5kg
lens:4.7-94mm
Heater & fan inside
|
Camera No. |
FCB-CV7300 |
|
Brand |
SONY |
|
Image device |
1/2.8 type EXmor CMOS |
|
Effective resolution |
1920(H)*1080(V) |
|
Backlight compensation |
ON/OFF |
|
Effective pixels |
2.0 Megapixels, 1080p output |
|
Synchronization system |
Inside with |
|
Minimum illumination |
Color 0.5 Lux, Night 0.095Lux |
|
Zoom ratio |
Optical 20X,digital 12X |
|
Focal length |
f=4.7mm-94.0 mm |
|
White balance |
Auto white balance, Indoor, Outdoor, One button way, Manual |
|
S/N Ratio |
>50db |
|
Electronic shutter |
Auto, Manual（1/2-1/10000s,21 steps stairs） |
|
WDR |
ON/OFF |
|
Consumption |
4.8W |
PTZ
|
OSD Menu |
English |
|
home function |
Pattern/Cruise/Horizontal scan |
|
Device labeled |
Can display or hide camera title |
|
Preset |
128 |
|
Auto scan |
4, 355 o |
|
Display zone |
8, label can set |
|
Address |
Display/Hide |
|
Address range |
1—254 can be soft/hard to change |
|
Communication |
RS485 |
|
Baud rate |
2400/4800/9600/19200 adjustable |
|
Compass |
Display/Hide |
|
Alarm |
7 input, 2 output |
|
Protocol |
Support Pelco-P/D |
|
Zoom mark |
Display/Hide |
|
Total camera temperature |
Display/Hide |
Mechanical
|
Pan angle |
0o—360o endless |
|
Pan speed |
0.4o—240o/s |
|
Tilt angle |
-90o—15o |
|
Tilt speed |
0.4o—120o/s |
|
Preset accuracy |
±0.1o |
General
|
Work temperature |
-40oC～+60oC |
|
Work humidity |
10～75% |
|
Heater |
Auto control temperature control |
|
Fan |
Can set temperature to trigger fan |
|
Dimension |
353×Ф200mm |
|
Weight |
9.5Kg |
|
Power supply |
AC24V |
|
Power consumption |
50W |
