Model:D3040-10-ELIV-Eb(2.8mm)
D3040-10-ELI-PV(2.8mm)
D3040-10-ELI-PV(3.6mm)

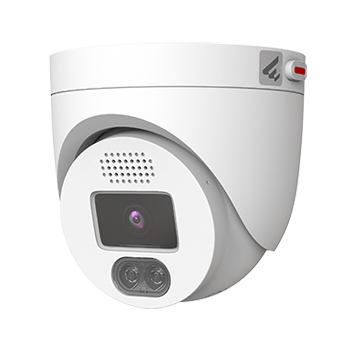

D3040-10-ELI-PV 4MP dual-light full-color voice AI dome camera
D3040-10-ELIV-Eb(2.8mm)
D3040-10-ELI-PV(2.8mm)
D3040-10-ELI-PV(3.6mm)
Deep learning elevator battery car detection algorithm/Supports 1 TOPS computing power/Supports backlight adaptation/Adopts 1/2.7" CMOS/120dB super wide dynamic, strong contrast scenes restore true details/Supports dual-light fill light, voice intercom function/Supports POE powered by
4 million dual-light full-color voice AI dome camera | 1 TOPS computing power | deep learning perimeter algorithm | accurate recognition of people, cars, and non-motor vehicles | backlight adaptation | behavior analysis
Vehicle license plate enhancement
Target target capture enhancement
Computing power 1 TOPS
Resolution 4MP 2560(H)*1440(V)
Sensor photosensitive surface size 1/2.7" CMOS
Minimum illumination color: 0.005Lux (F1.2, AGC ON, 1/30 shutter), black and white: 0.0025Lux (F1.2, AGC ON, 1/30 shutter), 0Lux (infrared on)
Lens focal length 2.8mm
Lens viewing angle Horizontal: 95.7°; Vertical: 51.6° or above Angle error ±5%
Infrared light fill distance 30m
White light fill light distance 20m
Video encoding format MJPEG/H.265
Video frame rate 25fps
Audio encoding format G.711a/G.711u/G.726/OPUS/AAC
RS485 interface supported
Switching interface support
Ethernet interface supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth 1 RJ45 10M/100M adaptive Ethernet port
Power supply type DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 12.2W, Typical power consumption: 8.2W
Working temperature -30℃~60℃
Working humidity 5%~95% (no condensation)
Protection grade IP67
Equipment anti-corrosion Class C anti-corrosion
