Brand：i- PRO Panasonic

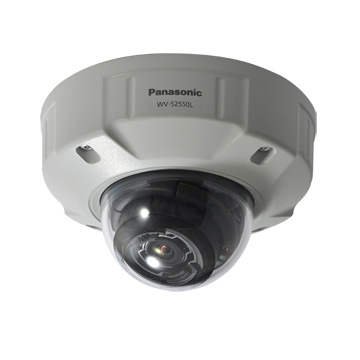

Model:WV-S2550L
Focal length 2.9 - 9 mm
5-megapixel iA H.265 Network Camera
5-megapixel images up to 30fps
iA (intelligent Auto)
Super Dynamic 120dB
Color night vision (0.0044 to 0.07 lx)
H.265 Smart Coding
i-VMD License Bundled
Fiber Optic Media Converter Unit (Optional WV-S25F1)
This 5-megapixel / 30 fps Fixed Dome Network Camera is based on the concept of "i-PRO EXTREME".
Extreme image quality allows evidence to be captured even under challenging conditions
- Auto Shutter speed control for moving vehicles
- Sharp and clear images of a walking person day & night
- Outstanding low light performance in true color with low noise nighttime applications
- Super Dynamic 120dB for backlit situations involving headlights and shadows on night streets
- Environmental durability : IP66, IK10, 50J compliant
Extreme H.265 compression with new Smart Coding (Click here for details)
- Longer recording and less storage compared to any H.264 based compression techniques
- New self-learning ROI* encoding (Auto VIQS) detects movement within the image and compresses the areas with little motion in order to reduce transmitted data while maintaining the quality of the image
*Region of Interest
Extreme Data Security
- Full encryption SD card edge recording to keep your data safe
- FIPS 140-2 Level 1 compliant
- Full end-to-end system encryption with supported VMS and devices to protect from IP snooping/spoofing and detect data alteration
Camera
COMPONENT SPECIFICATION
Image Sensor 1/2.8 type CMOS image sensor
Minimum Illumination Color : 0.07 lx, BW : 0.04 lx
(F1.3, Maximum shutter : Off (1/30s), AGC : 11) BW : 0 lx
(F1.3, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit)
Color : 0.0044 lx, BW : 0.003 lx
(F1.3, Maximum shutter : max. 16/30s, AGC : 11)
White Balance AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Shutter Speed 1/30 Fix to 1/10000 Fix
Intelligent Auto On / Off
Super Dynamic On / Off, The level can be set in the range of 0 to 31.
Dynamic Range Max 120 dB (Super Dynamic: On, Level: 30 or more, 15 fps)
Adaptive Black Stretch The level can be set in the range of 0 to 255.
Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off
The level can be set in the range of 0 to 31.
(only when Super dynamic / Intelligent Auto : Off)
Fog Compensation On / Off, The level can be set in the range of 0 to 8
(only when Intelligent auto / auto contrast adjust : Off)
Maximum Gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR LED Light High / Middle / Low / Off, Maximum irradiation distance : 40 m {Approx. 131 ft}
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On / Off, 4 areas available
Intelligent VMD (i-VMD) Type 6 *Bundled License
Privacy Zone On / Off (up to 8 zones available)
Image Rotation 0 °(Off) / 90 ° / 180 ° / 270 °, 90° and 270° are valid only in the 16: 9 mode.
Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks)
Lens
COMPONENT SPECIFICATION
Zoom Ratio 3.1x Optical (Motorized zoom / Motorized focus)
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Focal length 2.9 - 9 mm {1/8 inches - 11/32 inches}
Maximum Aperture Ratio 1 : 1.3 (WIDE) – 1 : 2.5 (TELE)
Focus range 0.3 m {11-13/16 inches} – ∞
Angular Field of View [16 : 9 mode] Horizontal : 33° (TELE) – 103° (WIDE)
Vertical : 19° (TELE) – 55° (WIDE)
[4 : 3 mode] Horizontal : 33° (TELE) – 103° (WIDE)
Vertical : 25° (TELE) – 75° (WIDE)
Adjusting Angle
COMPONENT SPECIFICATION
Adjusting Angle Horizontal (PAN) angle : ±180°, Vertical (TILT) angle : -30 to +85°, Azimuth (YAW) angle : ±100°
Browser GUI
COMPONENT SPECIFICATION
Camera Control Brightness, AUX On / Off
Audio Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High
Audio Output : On / Off Volume adjustment : Low / Middle / High
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Browser Microsoft Edge, Firefox, Google Chrome
Network
COMPONENT SPECIFICATION
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG) ?16 : 9 mode
3072 x 1728*4 / 2560 x 1440 / 1920 x 1080 / 1280 x 720 / 640 x 360 / 320 x 180
?4 : 3 mode
3072 x 2304*4 / 2560 x 1920 / 1280 x 960 / 800 x 600 / VGA / 400 x 300 / QVGA
H.265/H.264 [Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast / Multicast
JPEG [Image Quality]
10 steps
Smart Coding GOP (Group of pictures) control :
On (Frame rate control)* / On (Advanced)* / On (Mid) / On (Low) / Off
*On (Frame rate control) and On (Advanced) are only available with H.265.
Auto VIQS : On / Off
Audio Compression G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps
AAC-LC : 64 kbps / 96 kbps / 128 kbps
Audio Transmission Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP,
SNMP, DHCPv6, MLD, ICMP, ARP, IEEE 802.1X, DiffServ
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP,
SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP,
ARP, IEEE 802.1X, DiffServ
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card H.265 / H.264 recording :
Manual REC / Alarm REC (Pre/Post) / Schedule REC /
Backup upon network failure
JPEG recording :
Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Compatible SDXC/SDHC/SD Memory Card:
Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB**model
*SDHC card, ** SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibility iPad, iPhone, AndroidTM mobile terminals
Alarm
COMPONENT SPECIFICATION
Alarm Source 3 terminals input, VMD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification,
Indication on browser, FTP image transfer, Panasonic alarm protocol output
Input/Output
COMPONENT SPECIFICATION
Monitor Output (for Adjustment) VBS : 1.0 V [p-p] / 75 Ω, composite, ?3.5 mm mini jack
An NTSC or PAL signal can be outputted from camera
Audio input ?3.5 mm stereo mini jack
For microphone input : Recommended applicable microphone : Plug-in power type
(Sensitivity of microphone : -48 dB±3 dB (0 dB=1 V/Pa, 1 kHz))
Input impedance : Approx. 2 kΩ (unbalanced)
Supply voltage : 2.5 V ±0.5 V
For line input : Input level: Approx. –10 dBV
Audio Output ?3.5 mm stereo mini jack (monaural output)
Output impedance : Approx. 600 Ω (unbalanced) Output level : –20 dBV
External I/O Terminals ALARM IN 1(Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) , ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)
General
COMPONENT SPECIFICATION
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption DC power supply : DC12 V 840 mA/ Approx. 10.2 W
PoE (IEEE802.3af compliant) Device : DC48 V 220 mA/ Approx. 10.6 W (Class 0 device)
Ambient Operating Temperature -40 °C to +60 °C (-40 °F to 140 °F)*7
(Power On range : –30 °C to +60 °C {–22 °F to 140 °F})
Ambient Operating Humidity 10 to 100 % (no condensation)
Water and Dust Resistance IP66 (IEC60529), Type 4X(UL50), NEMA 4X compliant
Shock Resistance 50J (IEC 60068-2-75 compliant), IK10 (IEC 62262)
Dimensions *When using base bracket When using base bracket : ?164 mm × 139 mm (H) {?6-15/32 inches × 5-15/32 inches (H)}
Dome radius 42 mm {1-21/32 inches}
When using attachment plate only : ?154 mm × 103 mm (H) {?6-1/16 inches × 4-1/16 inches (H)}
Dome radius 42 mm {1-21/32 inches}
Mass *When using base bracket When using base bracket : Approx. 1.6 kg {3.53 lbs}
When using attachment plate only : Approx. 1.2 kg {2.65 lbs}
Finish Main body : Aluminum die cast, Light gray
Outer fixing screws : Stainless steel (Corrosion-resistant treatment)
Dome cover : Polycarbonate resin, Clear
NOTES
Important
– Safety Precautions : Carefully read the Basic Information,Installation Guide and Operating Instructions before using this product.
– i-PRO Co., Ltd. cannot be held responsible for the performance of the network and/or other manufacturers' products used on the network.
– Masses and dimensions are approximate. Specifications are subject to change without notice.
Trademarks and registered trademarks
– iPad and iPhone are trademarks of Apple Inc., registered in the U.S.and other countries. – Android is a trademark of Google LLC.
– ONVIF is a trademark of ONVIF, Inc.
– All other trademarks identified herein are the property of their respective owners
