Model：VB-H730F Mk II
lens：2.8 (W) – 8.4 mm (T)

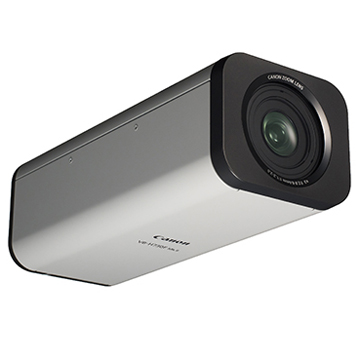

Canon VB-H730F Mk II
The VB-H730F Mk ll Full HD
fixed box camera delivers an
ultra-wide 112.6° field of view and
superior low-light performance.
? Full HD fixed box IP security camera
? 3x optical zoom lens with ultra-wide 112.6° field of view
? Superior image quality using Canon DIGIC DV III
processor
? Canon DIGIC NET II supports multiple motion JPEG and
dual H.264 video streams
? Excellent low-light performance: colour at 0.3 lux and
mono at 0.015 lux
? Auto Smart Shade Control (Auto-SSC) improves
foreground objects in bright backlit scenes
? Motion Adaptive Noise Reduction and Area-Specific
Data Size Reduction (ADSR) help reduce data size
while optimising image quality
? Built-in analytics functions for intelligent and efficient
alarm detection
? Live monitoring and configuration on supported web
browsers and mobile devices
? ONVIF® Profile S compliant
CAMERA
Image Sensor 1/3 type CMOS (primary colour filter)
Number of Effective Pixels Approx. 2.1 million pixels
Scanning Method Progressive
Lens 3x optical zoom (4x digital zoom) lens (electric drive)
Focal Length 2.8 (W) – 8.4 mm (T)
(W): maximum wide angle, (T): maximum telephoto
F-number F1.2 (W) – F2.0 (T)
Viewing Angle For 16:9 aspect ratios: Horizontal: 112.6° (W) – 36.7° (T)
Vertical: 60.8° (W) – 20.6° (T)
For 4:3 aspect ratios: Horizontal: 82.3° (W) – 27.5° (T)
Vertical: 60.8° (W) – 20.6° (T)
Day / Night Switch Auto / Day Mode / Night Mode
Min. Subject Illumination Day Mode (colour):
0.3 lux (F1.2, shutter speed 1/30 sec., when SSC is off, 50IRE)
Night Mode (monochrome):
0.015 lux (F1.2, shutter speed 1/30 sec., when SSC is off, 50IRE)
Focus One-shot AF / Manual / Fixed at infinity
Shooting Distance (from
front of lens)
Day Mode: 0.3 m (12 in.) – infinity
Night Mode: 1.0 m (3.3 ft.) – infinity
Shutter Speed 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500,
1/1000, 1/2000, 1/4000, 1/8000, 1/10000, 1/16000 sec.
Exposure Auto / Auto (Flickerless) / Auto (Shutter-priority AE) / Manual
(Shutter Speed, Aperture, Gain)
White Balance Auto/Manual
Daylight Fluorescent/White Fluorescent/Warm Fluorescent/
Mercury Lamp/Sodium Lamp/Halogen Lamp
Manual: One-shot WB/R Gain/B Gain
Metering Mode Center-Weighted / Average / Spot
Exposure Compensation 9 levels
Smart Shade Control Auto / Manual / Disable
Auto: 3 levels
Manual: 7 levels
Haze Compensation Auto / Manual / Disable
Auto: 3 levels
Manual: 7 levels
AGC Limit 6 levels
Motion-Adaptive NR
(Noise Reduction)
Available
SERVER UNIT
Video Compression Method JPEG, H.264
Video Size JPEG, H.264: 1920 x 1080, 960 x 540, 480 x 270
1280 x 720, 640 x 360, 320 x 180
1280 x 960, 640 x 480, 320 x 240
Video Quality JPEG, H.264: 10 levels
Frame Rate JPEG: 0.1 – 30 fps
H.264: 1/2/3/5/6/10/15/30 fps
– Values represent streaming performance from the camera.
– The frame rate may be reduced due to Viewer PC’s specs, the number of clients accessing
at the same time, network loads, video quality setting, type or movement of the subject
or other reasons.
Max. Frame Rate When streaming JPEG, H.264 (1920 x 1080): 30 fps
When used in the following combinations:
When streaming H.264(1) (1920 x 1080) and H.264(2) (all sizes) simultaneously: 15 fps
When streaming H.264(1) (all sizes) and H.264(2) (1920 x 1080) simultaneously: 15 fps
When streaming H.264(1) (1280 x 960) and H.264(2) (1280 x 960) simultaneously: 15 fps
When streaming H.264(1) (1280 x 720) and H.264(2) (1280 x 720) simultaneously: 15 fps
I-Frame Interval 0.5 / 1 / 1.5 / 2 / 3 / 4 / 5 sec.
Simultaneous Client Access Max. 30 Clients + 1 Admin Client
– H.264: Max. 10 Clients
Bit Rate Control Target Bit Rate: 64/128/256/384/512/768/1024/1536/2048/307
2/4096/6144/8192/10240/12288/14336/16384 kbps
ADSR: Area-specific Data
Size Reduction
Number of Specified Areas: Max. 8 areas
Data Size Reduction Level: 3 levels
Encrypted Communications SSL / TLS, IPsec (Auto Key Exchange / Manual)
IEEE802.1X EAP-MD5, EAP-TLS, EAP-TTLS, EAP-PEAP
Protocol IPv4, IPv6, TCP/IP, UDP, HTTP, FTP, SNMPv1/v2c/v3 (MIB2), DHCP,
DNS, AutoIP, mDNS, ARP, ICMP, POP3, NTP, SMTP, RTP/RTCP, RTSP,
SSL/TLS, IPsec, ONVIF, WV-HTTP (Canon proprietary)
ONVIF Profile Profile-S
Audio Compression Method G.711 μ-law (64 kbps)
Audio Communication Method Full-duplex (two-way)/half-duplex
– Echo cancellation function compliant
RTP, Sound Transfer Protocol by Canon
Audio File Playback Available (audio files can be played back when an event is
triggered by the intelligent function or external device input.)
– A third-party amplifier speaker is necessary
Privacy Mask Number of registration: Max. 8 places, Number of mask colours: 1
(select from 9 colours)
Preset Number of registers: Max. 20 positions (+Home Position)
Number of Preset Tour Route: Max. 1
Intelligent Function Video:
Moving Object Detection, Abandoned Object Detection,
Removed Object Detection, Camera Tampering Detection,
Passing Detection, Intrusion Detection
Detection Settings: Max. 15
Non-detection Area Settings: Available
Audio:
Volume Detection, Scream Detection
Event Trigger Type External Device Input, Intelligent Function (Video), Intelligent
Function (Audio), Timer, Day/Night Mode Switching
Number of Linked Events: 2
Linked Event Conditions: OR, AND (whether or not there is a
sequence to events)
Image Upload FTP/HTTP/SMTP (e-mail)
Event Notification HTTP/SMTP (e-mail)
Image Cropping Function Digital PTZ
Cropping sizes: 640 x 360 / 512 x 288 / 384 x 216 / 256 x 144 / 128 x 72
640 x 480 / 512 x 384 / 384 x 288 / 256 x 192 / 128 x 96
On-Screen Display Available (English only)
- The following languages require the use of the On-Screen
Display Assist Tool.
German/Spanish/French/Italian/Polish/Russian/Turkish/
Korean/Chinese (Simplified) /Japanese
Daylight Saving Time Available
APPLICATION
Viewer Camera Viewer
Mobile Camera Viewer
Camera software Camera Management Tool
Recorded Video Utility
On-Screen Display Assist Tool
Language German/English/Spanish/French/Italian/Polish/Russian/
Turkish/Thai/Korean/Chinese (Simplified) /Japanese
INTERFACE
Network Terminal LAN x 1 (RJ45, 100Base-TX (auto/full-duplex/half-duplex))
Audio Input Terminal
(common for LINE IN &
MIC IN)
?3.5 mm (?0.14 in.) mini-jack connector (monaural)
LINE IN (connect to an amplifier microphone) or MIC IN (connect
to a microphone w/o amplifier)
– Switch LINE IN/MIC IN in the Setting Page.
Audio Output Terminal (LINE
OUT)
?3.5 mm (?0.14 in.) mini-jack connector (monaural)
LINE OUT x 1 (connect to an amplifier speaker)
External Device I/O Terminal Input x 2, Output x 2
Memory Card SD Memory Card, SDHC Memory Card, SDXC Memory Card
Compatible.
Frame Rate: Max. 1 fps (JPEG)
Max. 30 fps (H.264)
OTHER
Operating Environment Temperature: -10°C – +50°C (+14°F – +122°F)
Humidity: 5% – 85% (without condensation)
Power Supply PoE: PoE power supply via LAN connector (IEEE802.3at Type1
compliant)
AC Adapter: PA-V18 (100 – 240 V AC)
(sold separately)
External power source: 24 V AC/12 V DC
Power Consumption When using PoE: Max. approx. 6.9 W*
When using AC Adapter PA-V18: Max. approx. 7.5 W (100 V AC)
Max. approx. 7.8 W (240 V AC)
When using DC: Max. approx. 7.0 W
When using AC: Max. approx. 6.5 W
* Class 0 power sourcing equipment (requests 15.4 W)
Dimensions (H x W x D) 65 x 80 x 192 mm (2.56 x 3.15 x 7.56 in.)
Weight Approx. 670 g (1.48 lb.)
International Standard EN55032 Class B, FCC part15 subpart B Class B, ICES-003 Class
B, VCCI Class B, RCM AS/NZS EN55032 Class B, CNS13438 Class
B, KN32 Class B, EN55024, KN35, EN50581
Product Details:
Product Name Mercury Code EAN Code
Network Camera VB-H730F Mk II 2551C001AB 4549292106930
