Brand:huawei holosens
model:X8341-10-HLI-PT2
lens:Fixed lens: 5 mm; rotatable lens: 10-50 mm

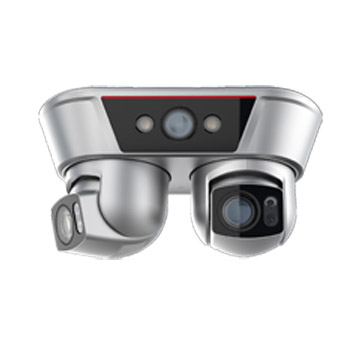

X8341-10-HLI-PT2 huawei 8T Dual-PTZ Compound-Eye Camera
8 TOPS computing power
Supports heat map, 1 + N, multi-algorithm switchover, behavior analysis, crowd flow analysis, face and body detection, object (motor vehicle, non-motorized vehicle, and pedestrian) classification, vehicle recognition, vehicle event detection, and traffic flow statistics
Supports backlight adaptation, overcast adaptation, and speed adaptation
1/1.8" CMOS sensor
Online loading and upgrade of algorithms
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
Supports switchover among multiple algorithms
CPU Fixed lens: Hi3559A V100 Rotatable lens: Hi3519A V100
Computing power 8 TOPS
Memory Fixed lens: DDR4 Rotatable lens: DDR4 4.0 GB
Flash type SPI NAND Flash 512.0 MB
Max resolution 4-megapixel: 2560 (H) x 1440 (V)
Sensor size 1/1.8"
Min illumination Color: 0.0004 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0001 lux (F1.2, AGC ON, 1/30s shutter speed)
Focal length Fixed lens: 5 mm; rotatable lens: 10 mm to 50 mm
Angle of view Fixed lens: horizontal: 95°; vertical: 55°; Rotatable lens: horizontal: 9.2° (T) to 40.2° (W); vertical: 5.3° (T) to 22.8° (W)
IR range 50 m
Illumination distance 30 m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
PTZ rotation angle Pan: PTZ dome camera 2: –5° to +185°; PTZ dome camera 1: –185° to +5°; Tilt: –5° to +45°
Pan speed Pan: 0.1°/s to 240°/s
Tilt speed Tilt: 0.1°/s to 140°/s
Heat map Supported
1 + N Supported
Vehicle License plate image enhancement
Traffic flow statistics Motor vehicle,Non-motorized vehicle,Pedestrian
Behavior analysis Fast movement,Removed object,Tripwire crossing,Intrusion,Area entry or exit,Loitering
Crowd flow analysis Queue length,Head counting,Crowd flow statistics
Face Face detection,Face image enhancement,Facial attribute recognition,Facial recognition
Person Person detection
Non-motorized vehicle Object classification,Cyclist attributes
Audio port Supported
RS-485 port Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M/1000M adaptive Ethernet port
Power type 48 V DC
Power consumption Maximum: 48 W; typical: 36 W
Operating temperature –40°C to +60°C (illuminator disabled) –40°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
IP rating IP66
IK rating IK10
Power type 48 V DC
Power consumption Maximum: 48 W; typical: 36 W
Operating temperature –40°C to +60°C (illuminator disabled) –40°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
Self-cleaning viewing window Supported
Self-cleaning viewing window specification 1. Double-sided coating 2. Transmittance: Tmin ≥ 93% and Tave ≥ 95% in the 400–950 nm band 3. Hardness: 2 HV 4. Contact angle: ≥ 110° 5. Service life: 5 years
Surge protection 6 kV
IP rating IP66
IK rating IK10
Net weight To be tested
Gross weight 9.9 kg
Device dimensions To be tested
Package dimensions To be tested
