Brand：Foctek
Model：C-M70(8MP)-1F18
Lens：70MM

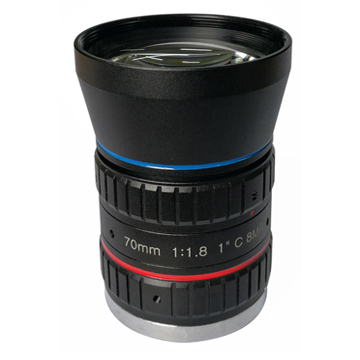

C-M70(8MP)-1F18 CCTV Len
Resolution 8 Megapixel
Image format 1"
Focal length 70mm
Aperture F1.8
Mount C
Field Angle
D×H×V(°)1 2/3
D 12.8 8.8
H 10. 2 7
V 7.7 5.2
Optical Distortion 0.13%(1")
CRA ≤7.57°
M.O.D. 3m

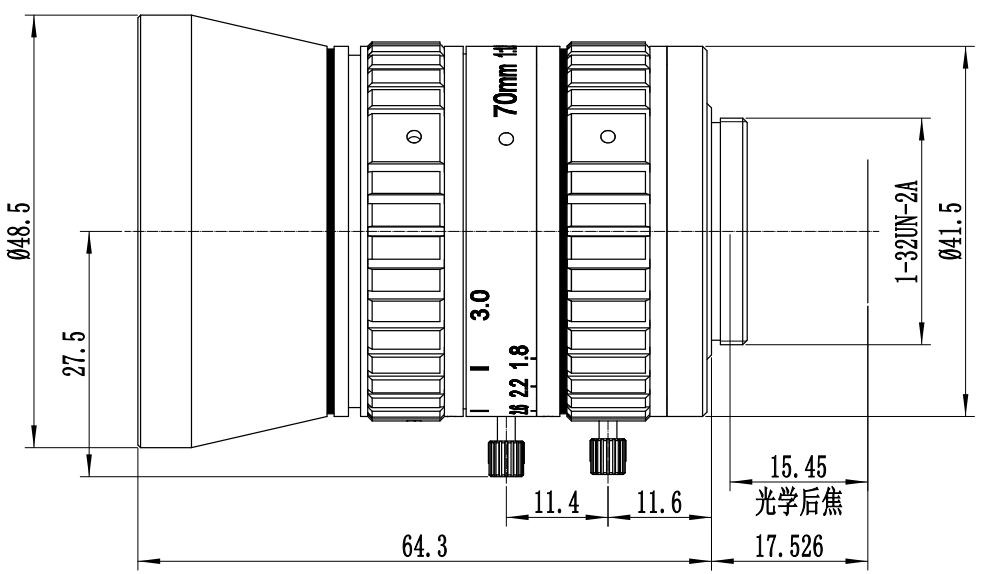

Dimension Φ48.5×68.3mm
Weight 223g
Flange BFL 17.526mm
BFL 15.45mm
MBF 13.5mm
IR Correction No
Operation
Iris Manual
Focus Manual
Zoom /
Operating temperature -20℃～+60℃
Size tolerance（mm）： 0-10±0.05 10-30±0.10 30-120±0.20
Angle tolerance ±2°
