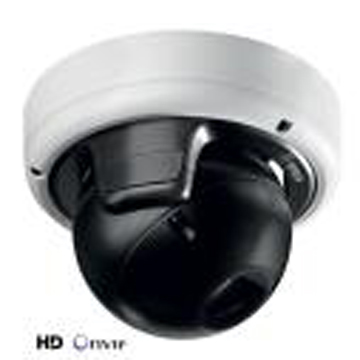

Brand：BOSCH
Model：NDN-832V09-P
High-performance IP dome camera for HD surveillance.1080p30; IP66; IP67; >IK10; IDNR; ROI; H.264 quadstreaming; cloud services; free viewing Apps; 1.8 to
3 mm SR lens; MOTION+
NDN-832V02-P
High-performance IP dome camera for HD surveillance.1080p30; IP66; IP67; >IK10; IDNR; IAE; ROI; H.264
quad-streaming; cloud services; free viewing Apps; 1.8to 3 mm SR lens; IVA
NDN-832V02-IP
High-performance IP dome camera for HD surveillance.1080p30; IP66; IP67; >IK10; IDNR; ROI; H.264 quadstreaming; cloud services; free viewing Apps; 3.8 to
13 mm SR lens; MOTION+
NDN-832V03-P
High-performance IP dome camera for HD surveillance.1080p30; IP66; IP67; >IK10; IDNR; IAE; ROI; H.264
quad-streaming; cloud services; free viewing Apps; 3.8 to 13 mm SR lens; IVA
NDN-832V03-IP
High-performance IP dome camera for HD surveillance.1080p30; IP66; IP67; >IK10; IDNR; ROI; H.264 quadstreaming; cloud services; free viewing Apps; 9 to
40 mm SR lens; MOTION+
NDN-832V09-P
High-performance IP dome camera for HD surveillance.1080p30; IP66; IP67; >IK10; IDNR; IAE; ROI; H.264
quad-streaming; cloud services; free viewing Apps; 9 to 40 mm SR lens; IVA
NDN-832V09-IP
Accessories
VDA-832FHD-WMT Wall Mount Wall mount bracket for HD FlexiDomes
VDA-832FHD-PMT Pipe Mount Pendant pipe mount bracket for HD FlexiDomes
LTC 9213/01 Pole Mount Adapter Flexible pole mount adapter for camera mounts (use
together with the appropriate wall mount bracket). Max. 9 kg (20 lb); 3 to 15 inch diameter pole; stainless steel straps
S1460 Service/Monitor Cable 2.5 mm jack to BNC video connector cable. 1 m
VIDEOJET XTC XF Video Transcoder High-performance video transcoder. H.264; CF card
slot; ROI; max resolution 1080p; 2 channels
Order number VJT-XTCXF
VDA-CMT-PTZDOME Corner Mount Adapter Corner (270°) mount adapter for use with the
appropriate wall mount
VDA-CMT-PTZDOME
NPD-5001-POE Midspan PoE Injector Power-over-Ethernet midspan injector for use with PoE
enabled cameras; 15.4 W, 1-port
NPD-5004-POE Midspan PoE Injector Power-over-Ethernet midspan injectors for use with
PoE enabled cameras; 15.4 W, 4-ports
Viewing angle
1.8 to 3 mm Wide 115 x 84o (H x V)
Tele 87o x 57o (H x V)
3.8 to 13 mm Wide: 87o x 48o (H x V)
Tele: 26o x 14.3o (H x V )
9 to 40 mm Wide: 37o x 20o (H x V)
Tele: 8.5o x 4.8o (H x V )
Mechanical
Dimensions (D x H) 208 x 151 mm (8.2 x 5.95 in)
Weight 2200 g (4.85 lb)
Color RAL 9007 Metallic Titanium
Mechanical
Dimensions (D x H) 208 x 151 mm (8.2 x 5.95 in)
Weight 2200 g (4.85 lb)
Color RAL 9007 Metallic Titanium
Audio
Standard G.711, 8kHz sampling rate
AAC
Signal-to-noise ratio > 50 dB
Audio Streaming Full duplex / half duplex
Input/output
Analog Video out
(service only)
CVBS (PAL/NTSC), 1 Vpp, 2.5 mm jack,
75 Ohm (non-protected)
Audio 1 x mono line in, 1 x mono line out
signal line in 12 kOhm typical, 1 Vrms max
signal line out 1 Vrms at 1.5 kOhm typical,
Alarm 2 inputs
activation
voltage
+5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pullup resistor)
Relay 1 output
voltage 30 VAC or +40 VDC
Maximum 0.5 A continuous, 10VA
