Brand：huawei
Model：C2150-10-LI-PV
Focal length 3.6mm

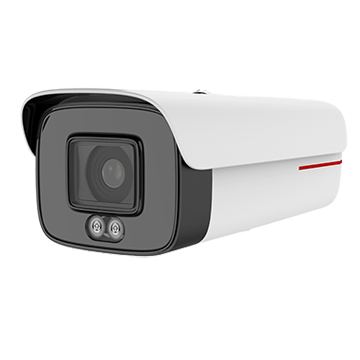

C2150-10-LI-PV(3.6mm)1T 5MP Double Light Full-Color Alert AI Bullet Camera
1 TOPS computing power
Supports behavior analysis, crowd flow analysis, and target and person detection
Supports backlight adaptation and overcast adaptation
1/2.7" CMOS sensor
Online loading and upgrade of algorithms
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
Various light compensation modes, such as starlight, SuperColor, and intelligent light compensation
Built-in dual microphones and speaker for voice intercom
Preset voice announcements for varied scenes and allow for custom audio file import
Key Spec
Behavior analysis Fast movement/Tripwire crossing/Intrusion/Area entry or exit/Loitering/Battery Vehicle Detection
Crowd flow analysis Queue length/Head counting/Crowd flow statistics
Target Target detection/Target attribute recognition
Person Person detection
CPU Hi3516DV300
Computing power 1 TOPS
Memory DDR3 0.5 GB
Flash type SPI NAND FLASH
Max resolution 5MP 2560(H)*1920(V)
Sensor size 1/2.7" CMOS
Min illumination Color: 0.005 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0025 lux (F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled)
Focal length 3.6mm
Angle of view Horizontal: 78.8°; vertical: 55.9°
IR range 30m
Illumination distance 20m
Video encoding format MJPEG/H.264/H.265
Video frame rate 5-megapixel: 20 fps; < 5-megapixel: 30 fps or 25 fps
Audio encoding format G.711a/G.711u/G.726/OPUS
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Power type 12 V DC and PoE (IEEE 802.3af)
Power consumption Maximum: 7.8 W; typical: 3.3 W
Operating temperature –30°C to +60°C
Operating humidity 5% to 95% (non-condensing)
IP rating IP67
Basic Spec
Shutter speed Supports slow shutter. Slow shutter speed levels: 1/3s, 1/4s, 1/8s, 1/12s, 1/15s; Non-slow shutter speed levels: 1/25s, 1/30s, 1/50s, 1/60s, 1/90s, 1/100s, 1/120s, 1/125s, 1/180s, 1/250s, 1/350s, 1/500s, 1/725s, 1/1000s, 1/1500s, 1/2000s, 1/3000s, 1/4000s, 1/6000s, 1/10000s, 1/30000s, 1/100000s, and customized (default: 1/25s);
Day/Night mode Supported; automatic (ICR), color, B/W, or scheduled (default: automatic) Sensitivity level: high (default), medium, and low Image triggering/Internal triggering
Gain control Manual exposure: 101 levels configurable from 0 to 100 (step: 1; default value: 0)
White balance Auto/Manual/OnePush
Digital noise reduction 2D/3D noise reduction
WDR 120 dB
Highlight compensation Supported
Image stabilization The function is not supported. Sensitivity levels are not supported.
Defogging Supported
Exposure compensation Supported
Exposure mode Supported
SNR > 45 dB
Backlight adaptation Supported
Overcast adaptation Supported
Distortion correction Supported
Corridor mode Supported
Image correction Vertical, horizontal, or both
Privacy mask Supported
Lens/Illuminator
Focal length 3.6mm
Max f-number F1.6
Lens aperture type Fixed iris
Angle of view Horizontal: 78.8°; vertical: 55.9°
Built-in IR illuminator Supported
IR range 30m
Built-in white light illuminator Supported
Illumination distance 20m
Video/Audio
Video encoding format MJPEG/H.264/H.265
Video encoding channels Triple streams
Primary stream resolution 2560 x 1920 (5MP), 2560 x 1440 (4MP), 2048 x 1536 (3MP), 1920 x 1080 (1080p), 1280 x 720 (720p)
Secondary stream resolution Secondary stream 1: 720 x 576 (PAL), 720 x 480 (NTSC), 352 x 288 (PAL), 352 x 240 (NTSC) Secondary stream 2: 352 x 288 (PAL), 352 x 240 (NTSC)
Video frame rate 5-megapixel: 20 fps; < 5-megapixel: 30 fps or 25 fps
Video bit rate Only for H.264 and H.265: 1080p to 4K: 512 kbit/s to 16 Mbit/s 720p: 384 kbit/s to 8 Mbit/s D1: 256 kbit/s to 4 Mbit/s CIF: 32 kbit/s to 1 Mbit/s
Intelligent encoding Extra265/264
Region of Interest (ROI) Each channel supports a maximum of four ROIs. The image quality in an ROI is configurable from 0 to 10 (step: 1).
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726: 8 kHz OPUS: 8/12/16/24/48 kHz
Audio bit rate G.711a/G.711u: 64 kbit/s G.726: configurable (16/24/32/40 kbit/s) OPUS: configurable (16/24/32/40/64/96/128/160/192/224/256/288 kbit/s)
Intelligence
Behavior analysis Fast movement/Tripwire crossing/Intrusion/Area entry or exit/Loitering/Battery Vehicle Detection
Crowd flow analysis Queue length/Head counting/Crowd flow statistics
Target Target detection/Target attribute recognition
Person Person detection
Port
SD card port MicroSD card slot that supports microSDHC/microSDXC; maximum memory card capacity: 256 GB
Audio-in port Supported (2-channel built-in MIC)
Audio-out port Supported (one-channel speaker)
Boolean port Supported,2 input ports and 1 output port
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Network
Access protocol GB/T 28181 (2011, 2016)/SDK (proprietary protocol)/REST API (proprietary protocol)/GA/T 1400
Protocols supported by IPv4 TCP, IPv4, UDP, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1X, QoS, SMTP, and PPPOE; Note: The northbound protocol needs to adapt to the PPPoE dialup scenario.
Protocols supported by IPv6 HTTPS,RTP,RTCP,Onvif,RTSP,IPv6,ICMPv6,DHCPv6
Services supported by IPv6 Web page: supports live video (static IPv6 address), video recording (static IPv6 address), IPv6 address (including static IP addresses and router advertisements) configuration, and DHCPv6 configuration.
ONVIF: supports live video (static IPv6 address), video recording (static IPv6 address), IPv6 address (including static IP addresses and router advertisements) configuration, and DHCPv6 configuration; does not support Wi-Fi probe.
Note: 1. IPv6 multicast is not supported.
2. DNS is not supported.
3. IP address conflict check is not supported.
Security
User rights Three user roles: administrator, advanced operator, and common operator
Security mode User name and password authentication, 802.1X authentication, and HTTPS digital certificate
Video digital watermark Supported
GB 35114 Supported
Secure boot Supported
General Spec
Power type 12 V DC and PoE (IEEE 802.3af)
Power consumption Maximum: 7.8 W; typical: 3.3 W
Operating temperature –30°C to +60°C
Operating humidity 5% to 95% (non-condensing)
Surge protection 4 kV
IP rating IP67
Net weight 0.6 kg
Gross weight 0.86 kg
Device dimensions 88 mm x 107 mm x 206 mm
Package dimensions 115 mm x 140 mm x 297 mm
Accessory
Chinese-Standard 12 V DC/2 A Power Adapter
EADAPTE09
02220294
Australian-Standard 12 V DC/2 A Power Adapter
HW-120200A2W
02220648
12 V DC/2 A Power Adapter
HW-24-12AC14D
02220883
12 V DC/1.5 A Power Adapter
HW-120150C3W
02220931
Wall Mount for Box Cameras and Small Bullet Cameras
ACC3217
51661QBT
